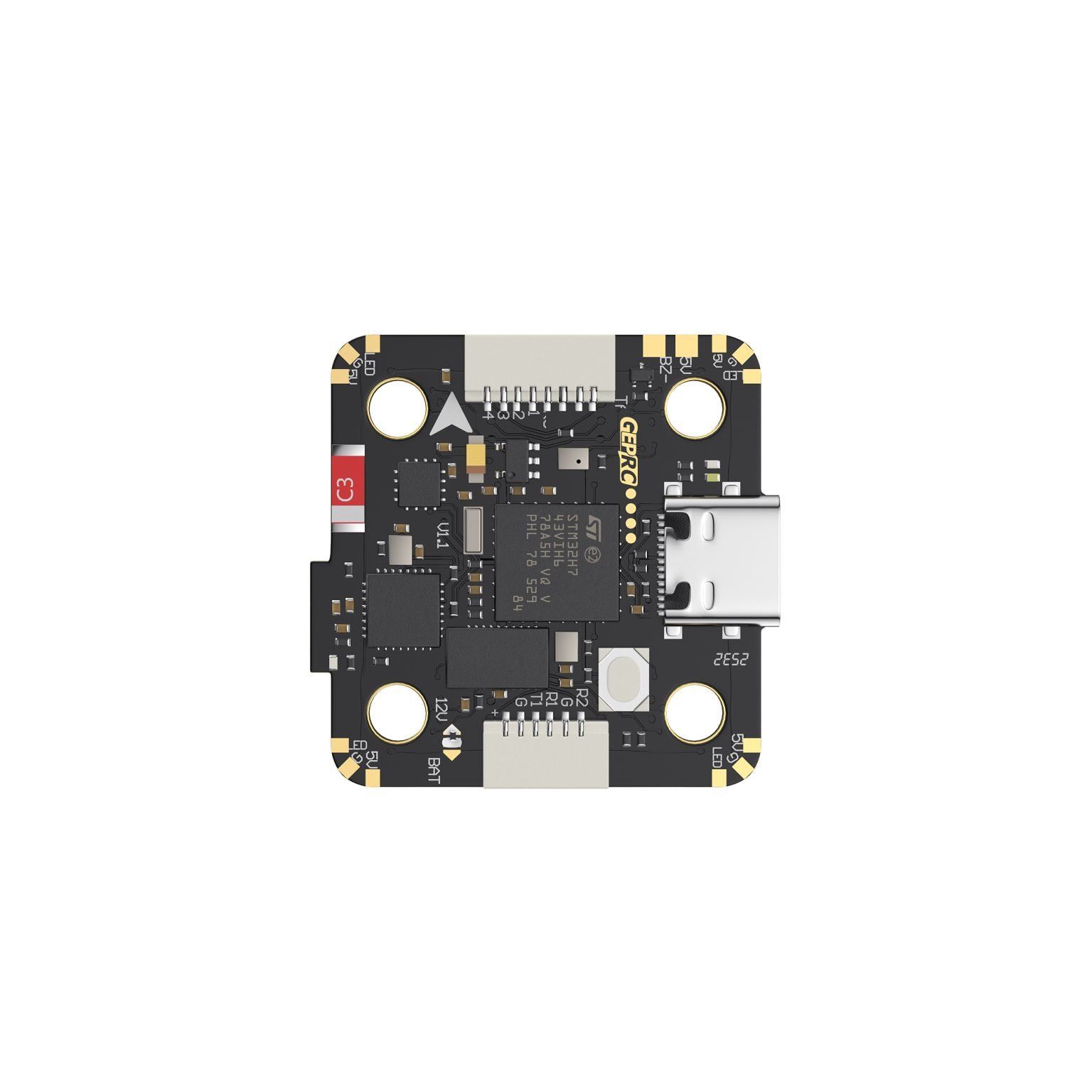

KSY TAKER H743 MINI Flight Controller

Specifications

• FC Model: TAKER H743 MINI Flight Controller
• MCU: STM32H743
• IMU: ICM42688-P (Gyro)
• Air Unit Connector: DJI Plug & Play
• Blackbox: 16MB onboard
• Bluetooth: Supported
• BEC Output: 5V@3A, 12V@2.5A (Dual)
• USB: Type-C
• OSD: Betaflight OSD AT7456E
• Barometer: Supported
• Firmware Target: GEPRC TAKER H743 MINI
• Input Voltage: 3–8S LiPo
• FC Dimensions: 31×31mm
• Mounting: 20×20mm
• Power Filtering: Integrated LC filter
• UART: 7 (UART8 reserved for Bluetooth)
• Weight: 6.1g
