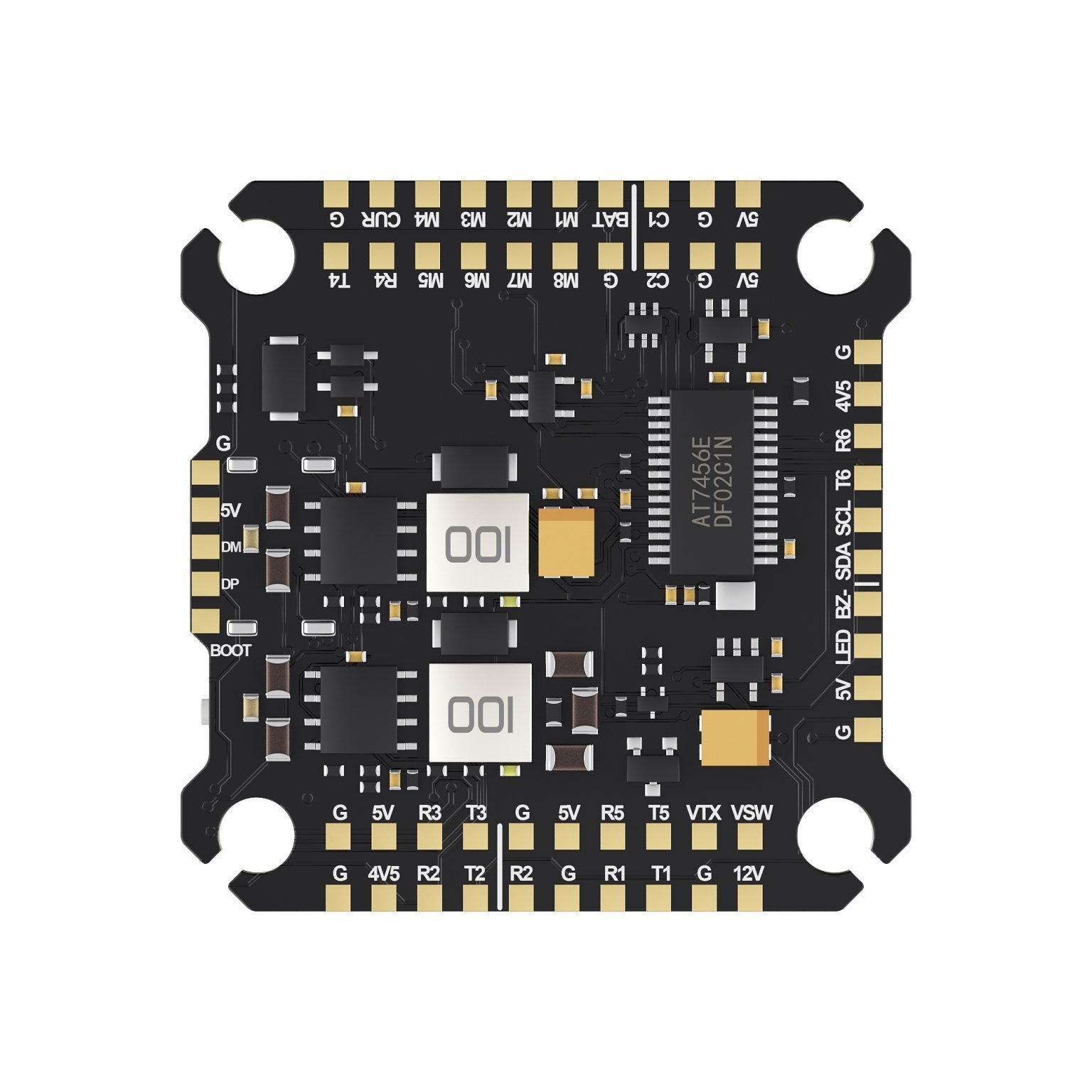

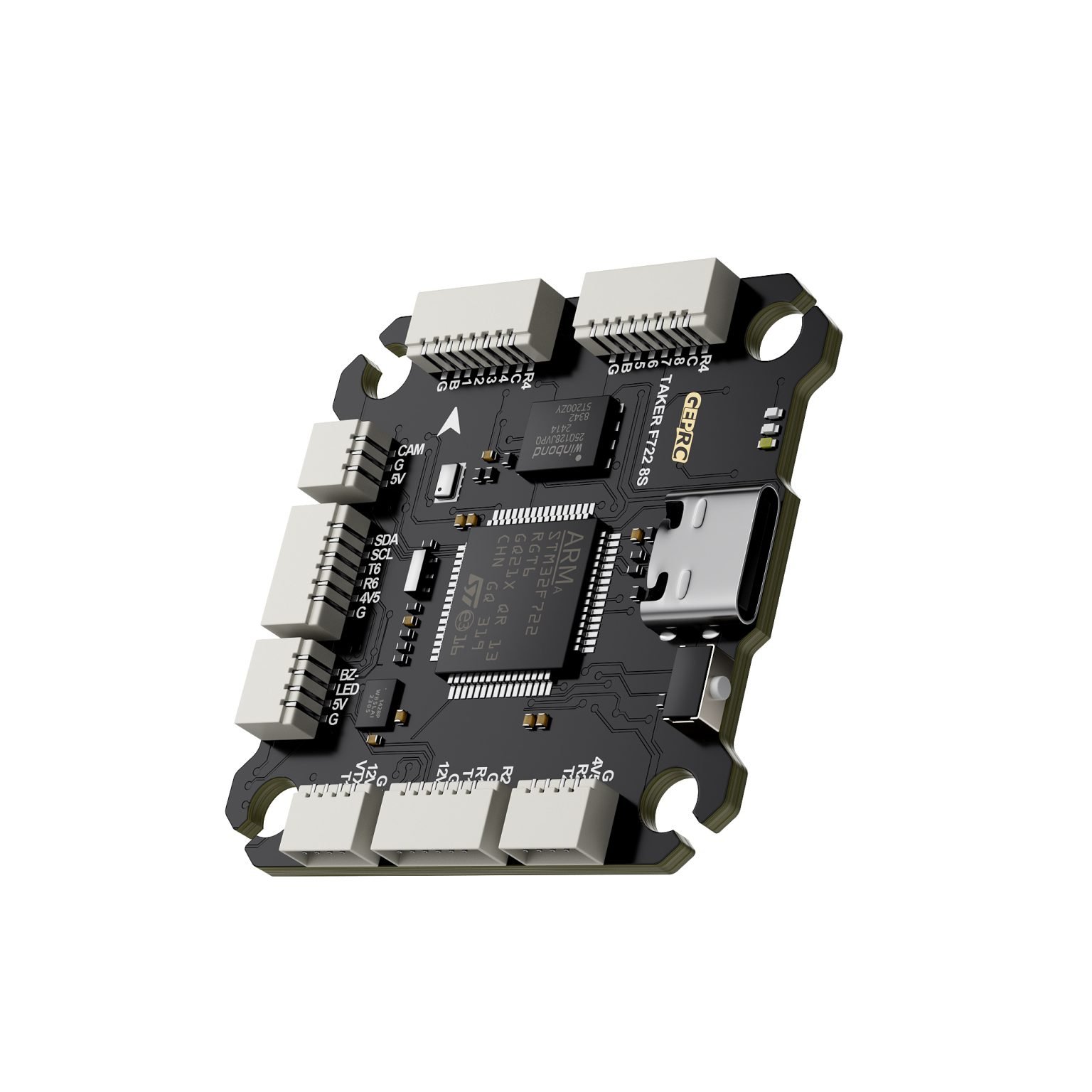

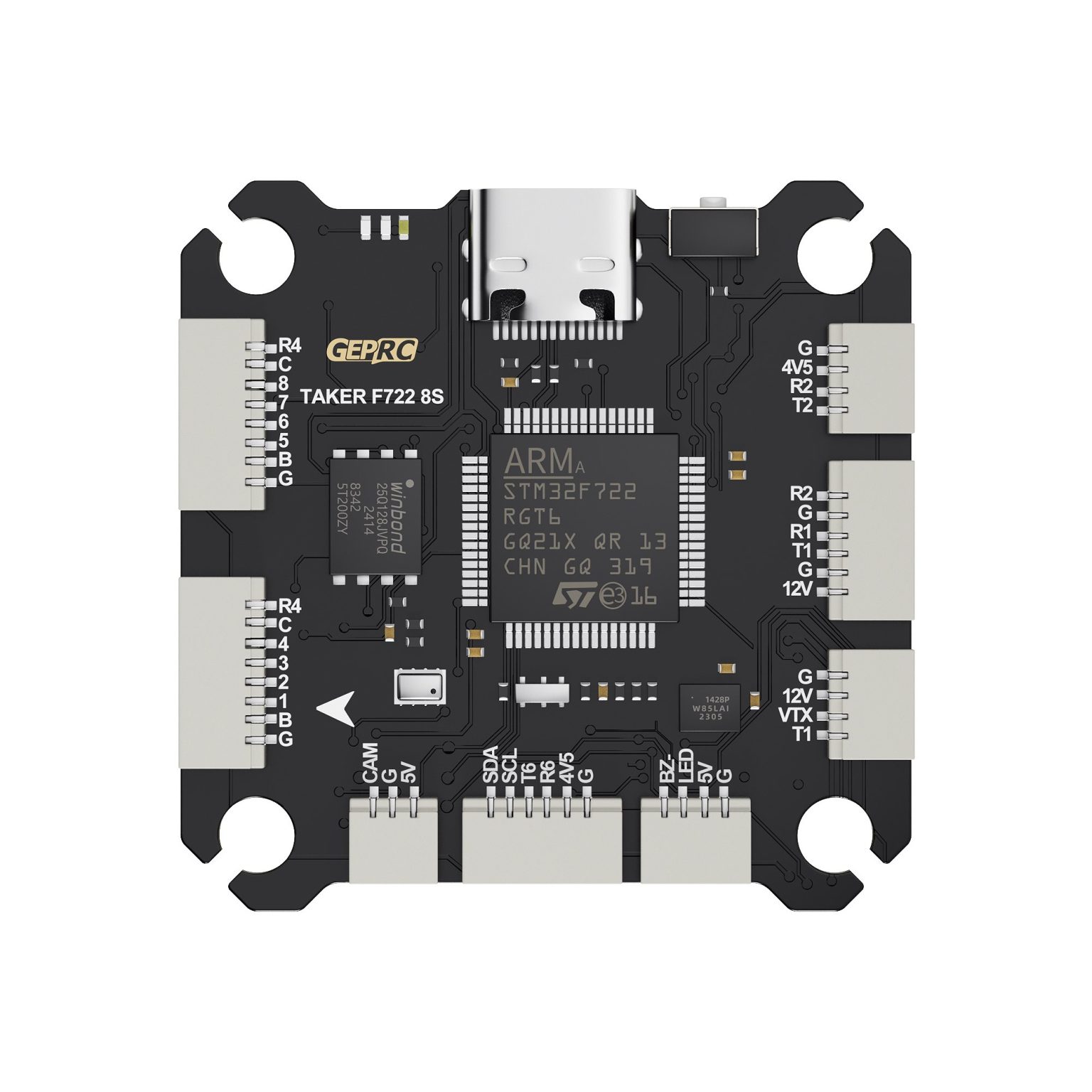

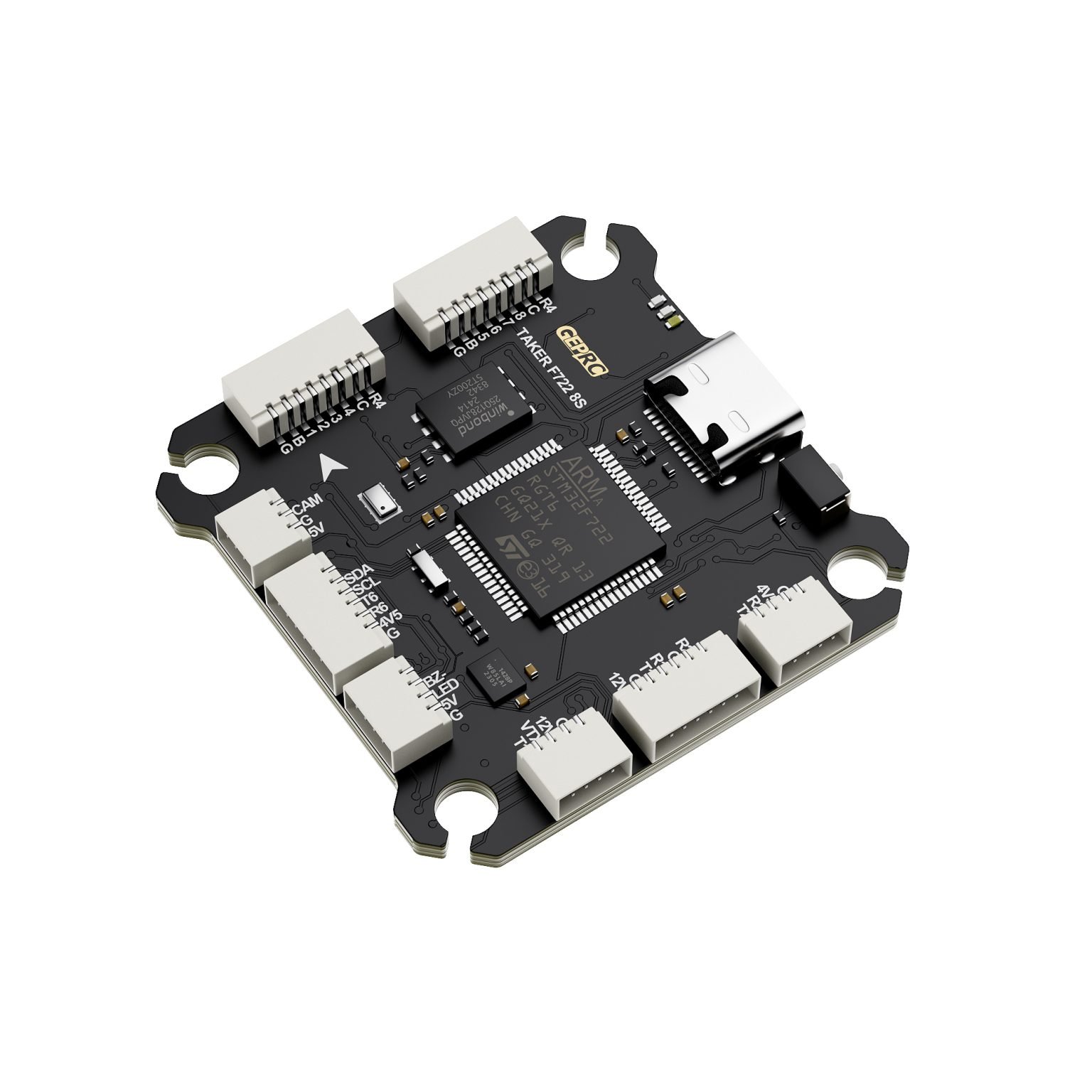

KSY TAKER F722 8S Flight Controller

Feature

1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 16M Blackbox storage
4. 5V@3A+12V@3A dual independent BEC
5. Integrated LC filter
6. Upgrade type-C USB interface
7. Directly plugged into the DJI Air Unit
8. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
9. Integrated barometer
10. Supports 8S voltage
11. Support direct insertion of 8 motors

Specifications

• FC Model: TAKER F722 8S Flight Controller
• MCU: STM32F722
• IMU: ICM42688-P(SPI)
• Air Unit Connection: Direct plugging into DJI Air Unit
• Black Box: 16M onboard
• Barometer: Support
• Motor outputs: M1-M8
• USB Interface: Type-C
• OSD: BetaFlight OSD w/ AT7456E chip
• BEC: 5V@3A,12V@3A dual BEC
• Firmware Target: GEPRC_TAKER_F722_8S
• Size: 38.5×38.5mm
• Mounting: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
• Input Voltage: 3-8S LiPo
• UART: 6 UARTs
• Power Filter: Integrated LC filter
• Weight：8.3g

Includes

1 x TAKER F722 8S Flight Controller 1 x DJI connection cable(SH1.0 6pin 100mm) 2 x FC adapter cable(SH1.0 8pin 30mm) 4 x Nylon nuts 4 x Silicone grommets 2 x Receiver silicone cable(SH1.0 4pin 150mm) 1 x Camera connection cable(SH1.0-SH1.25 3pin 60mm)
