Specifications
10000KV

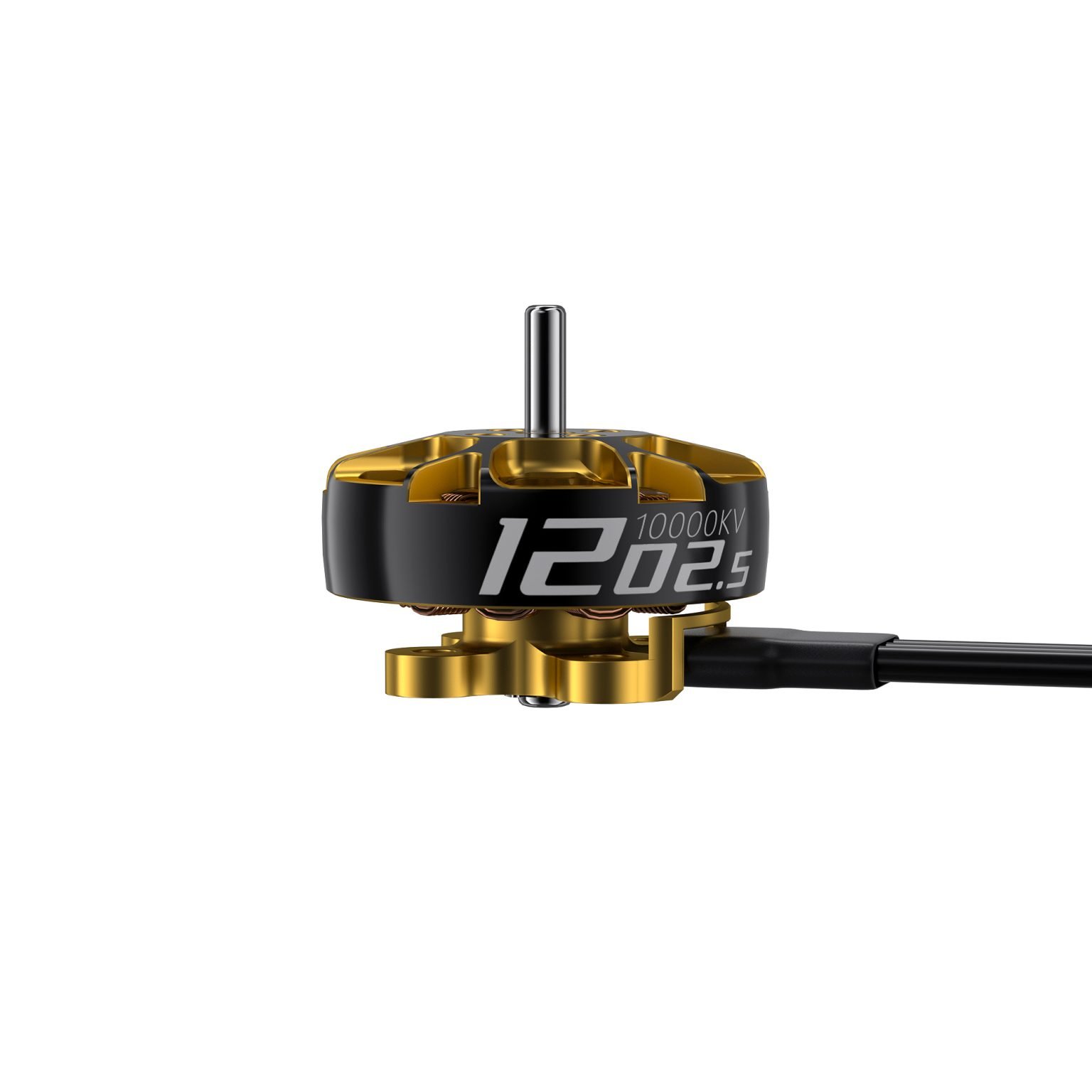

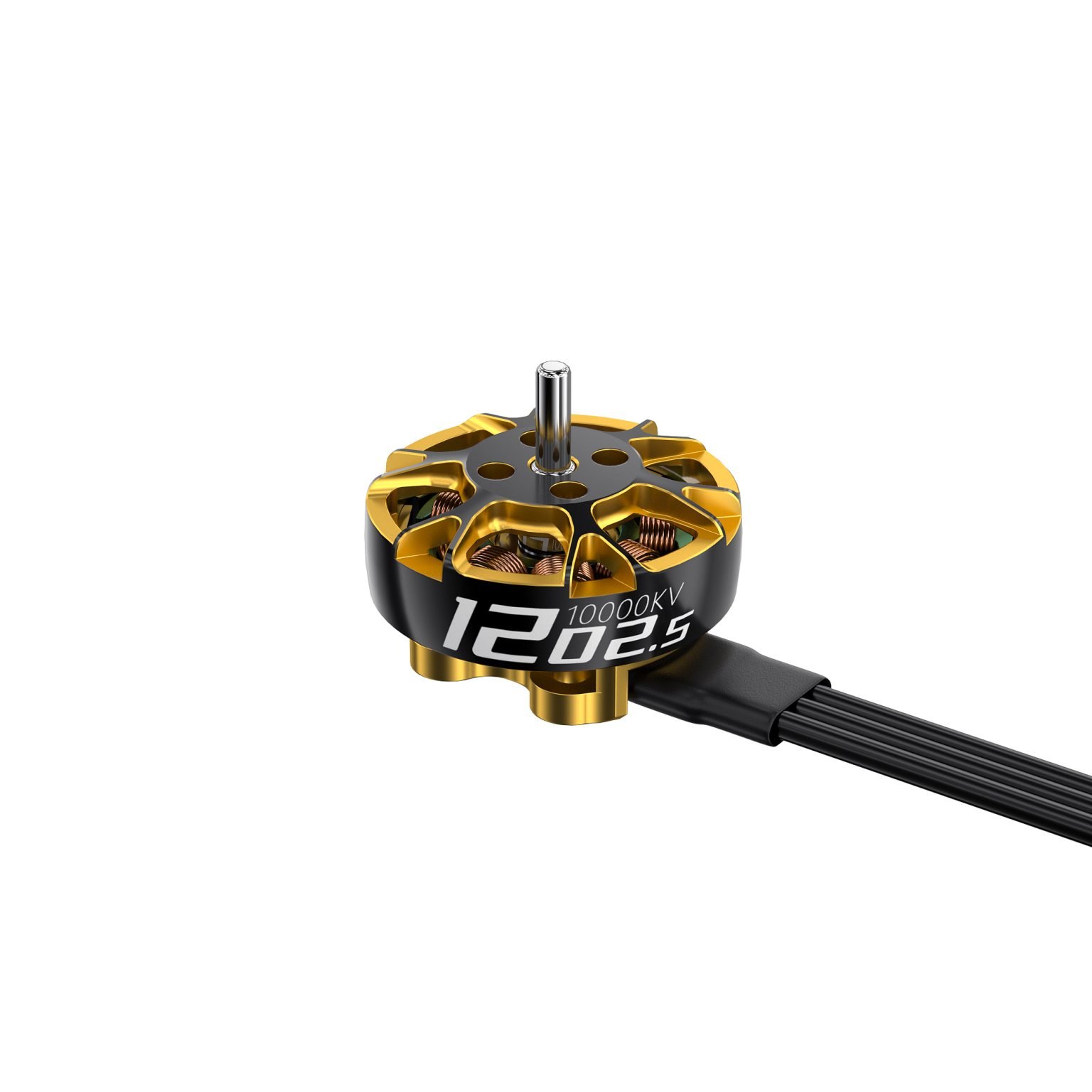

- Model: GEPRC SPEEDX2 1202.5-10000KV

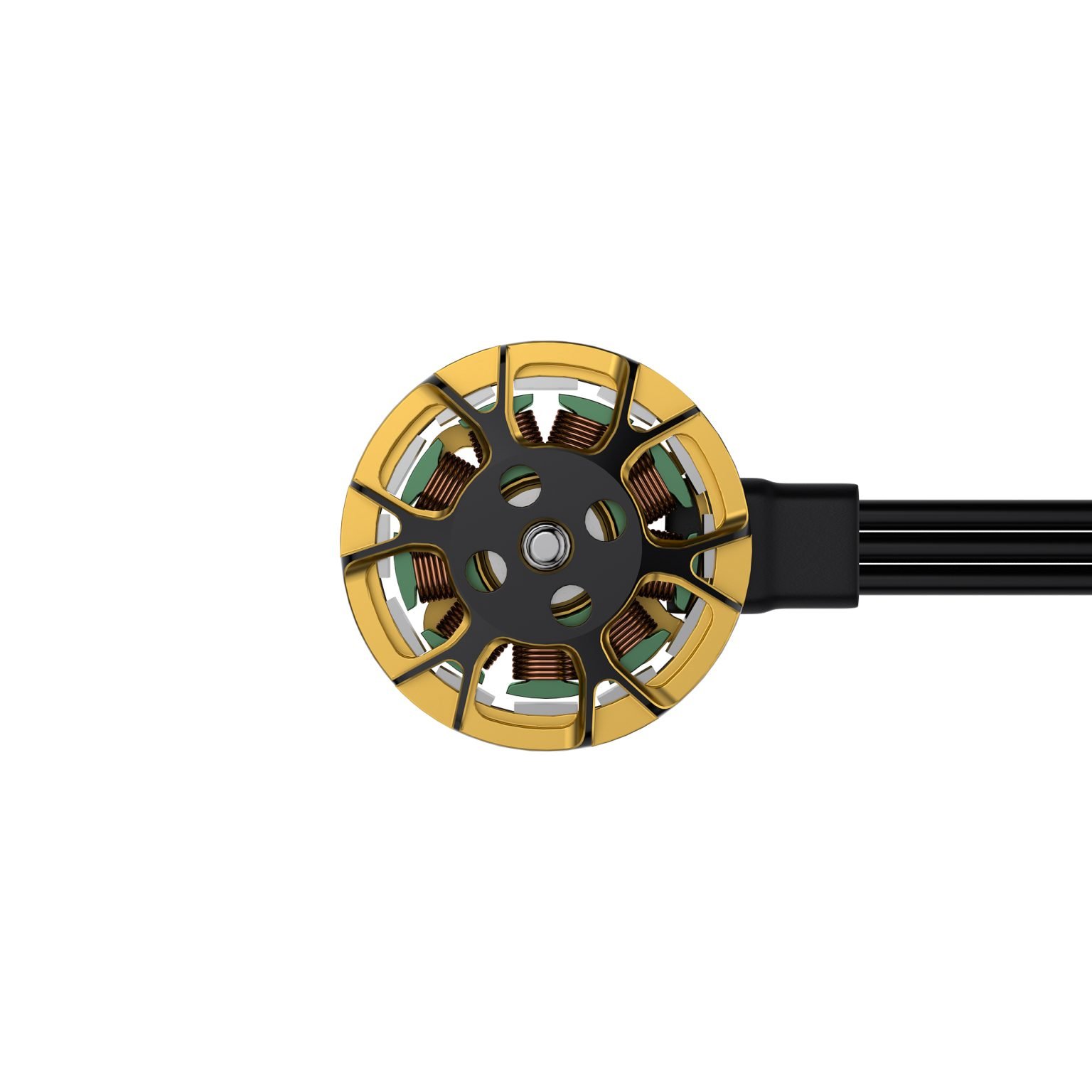

- Configuration: 9N12P
- Bearing: 415zz
- Stator Diameter: 12mm
- Stator Height: 2.5mm
- Shaft Diameter: Φ1.5mm
- Dimension: Φ16.17mm*9.2mm

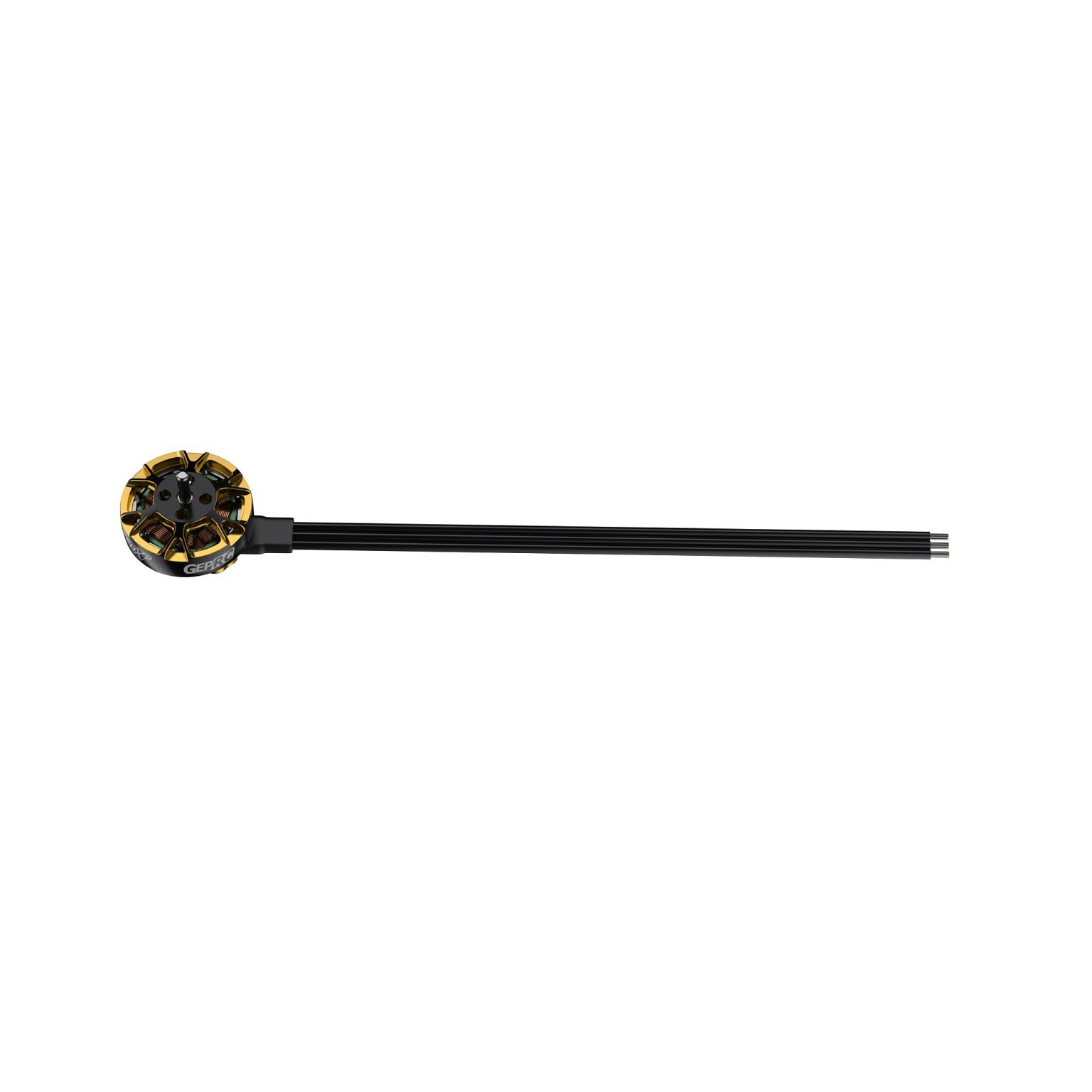

- Lead Wires: 28#AWG 60mm
- Rated Voltage (LiPo): 1-2S
- Maximum Power: 84W
- Maximum Current: 11.3A
- Recommended ESC: 12-20A
- Mounting Patterns: 9mmx9mm(M2)
- Color: Titanium gold
- Weight: 4.53g (60MM wire length)
- Compatible Models: 2-3 inch drones
15000KV
- Model: GEPRC SPEEDX2 1202.5-15000KV
- Configuration: 9N12P
- Bearing: 415zz
- Stator Diameter: 12mm
- Stator Height: 2.5mm
- Shaft Diameter: Φ1.5mm
- Dimension: Φ16.17mm*9.2mm
- Lead Wires: 28#AWG 60mm
- Rated Voltage (LiPo): 1-2S
- Maximum Power: 128W
- Maximum Current: 17.3A
- Recommended ESC: 12-20A
- Mounting Patterns: 9mmx9mm(M2)
- Color: Titanium gold
- Weight: 4.53g (60MM wire length)
- Compatible Models: 2-3 inch drones
Includes
1 x GEPRC SPEEDX2 1202.5 motor
6 x M2*4mm screws
