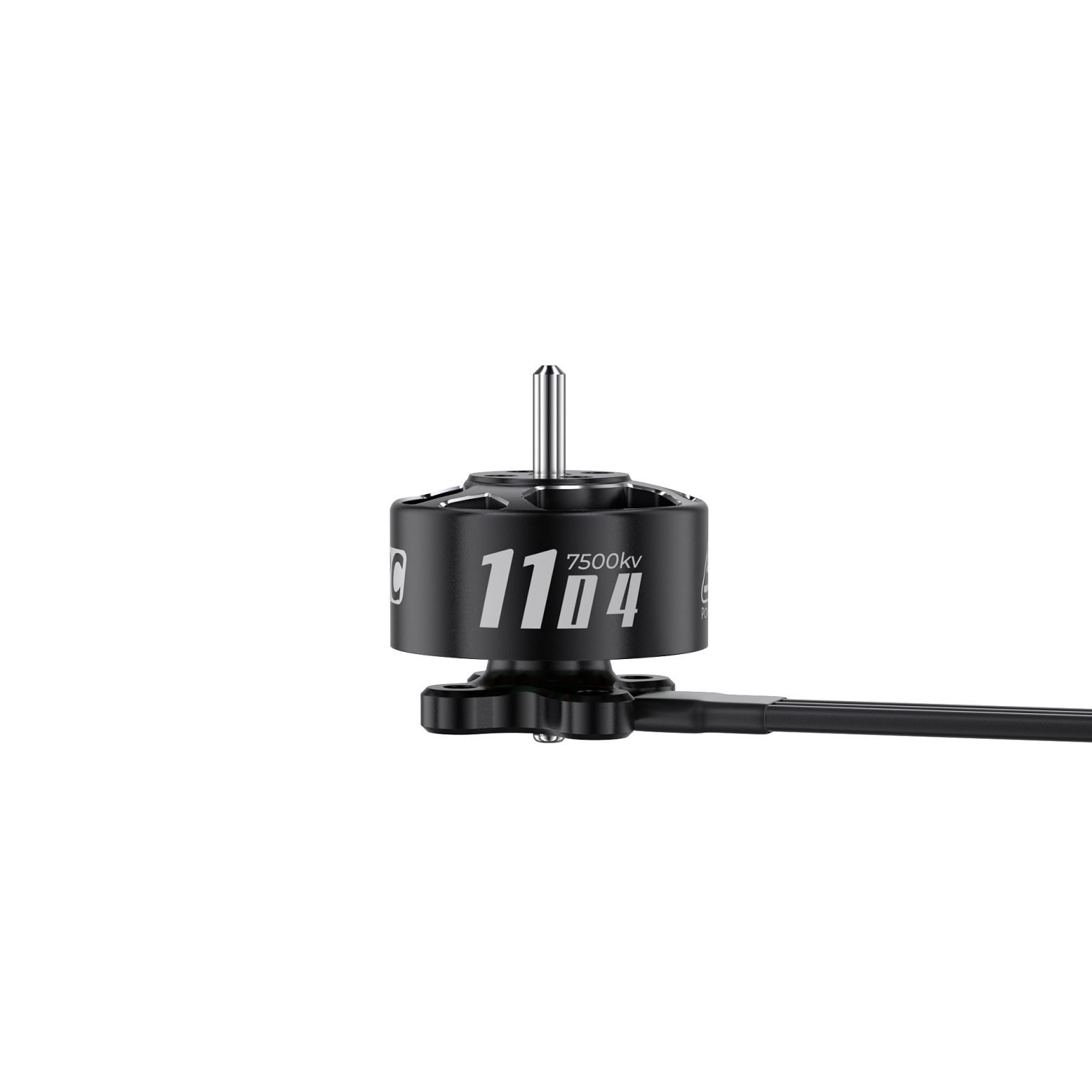

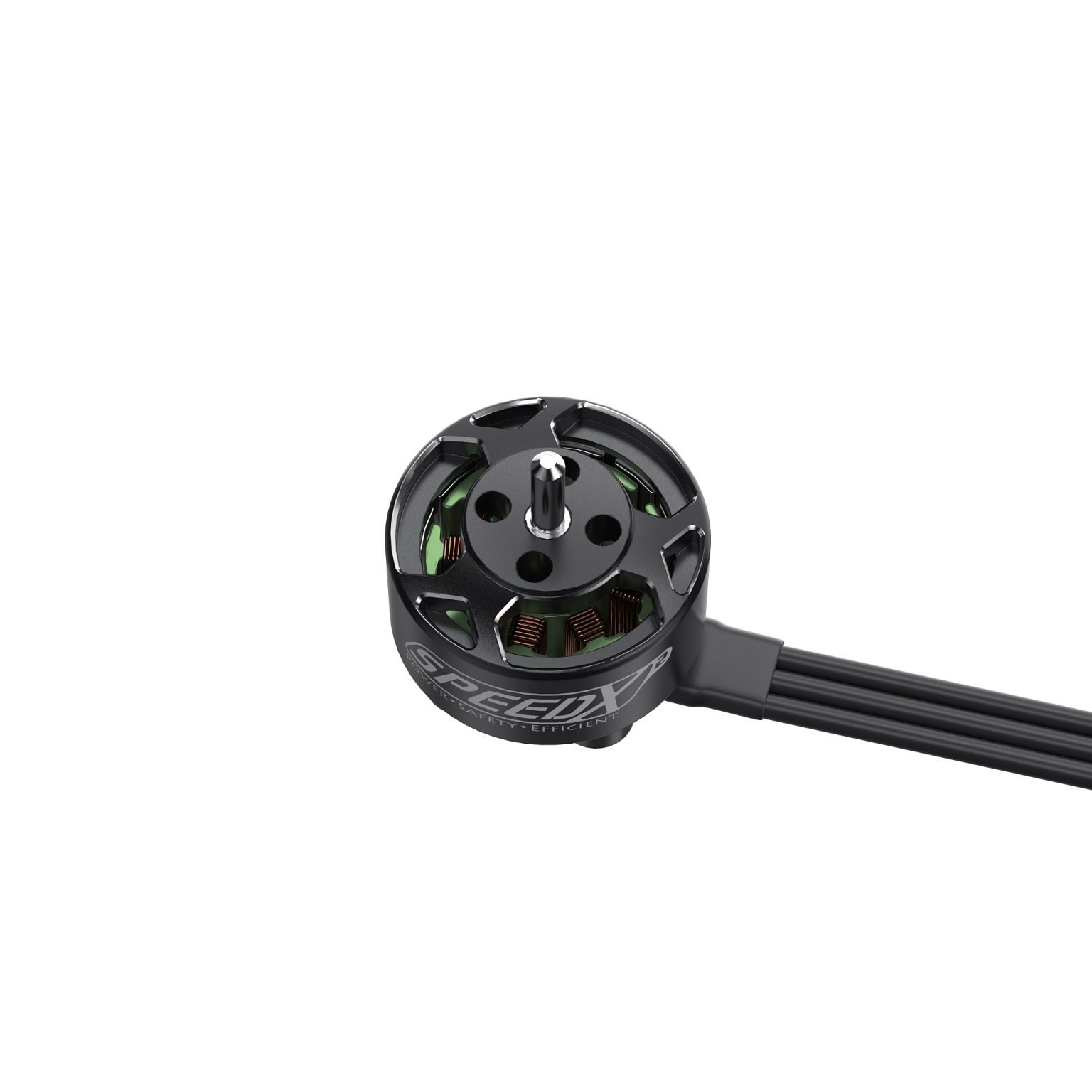

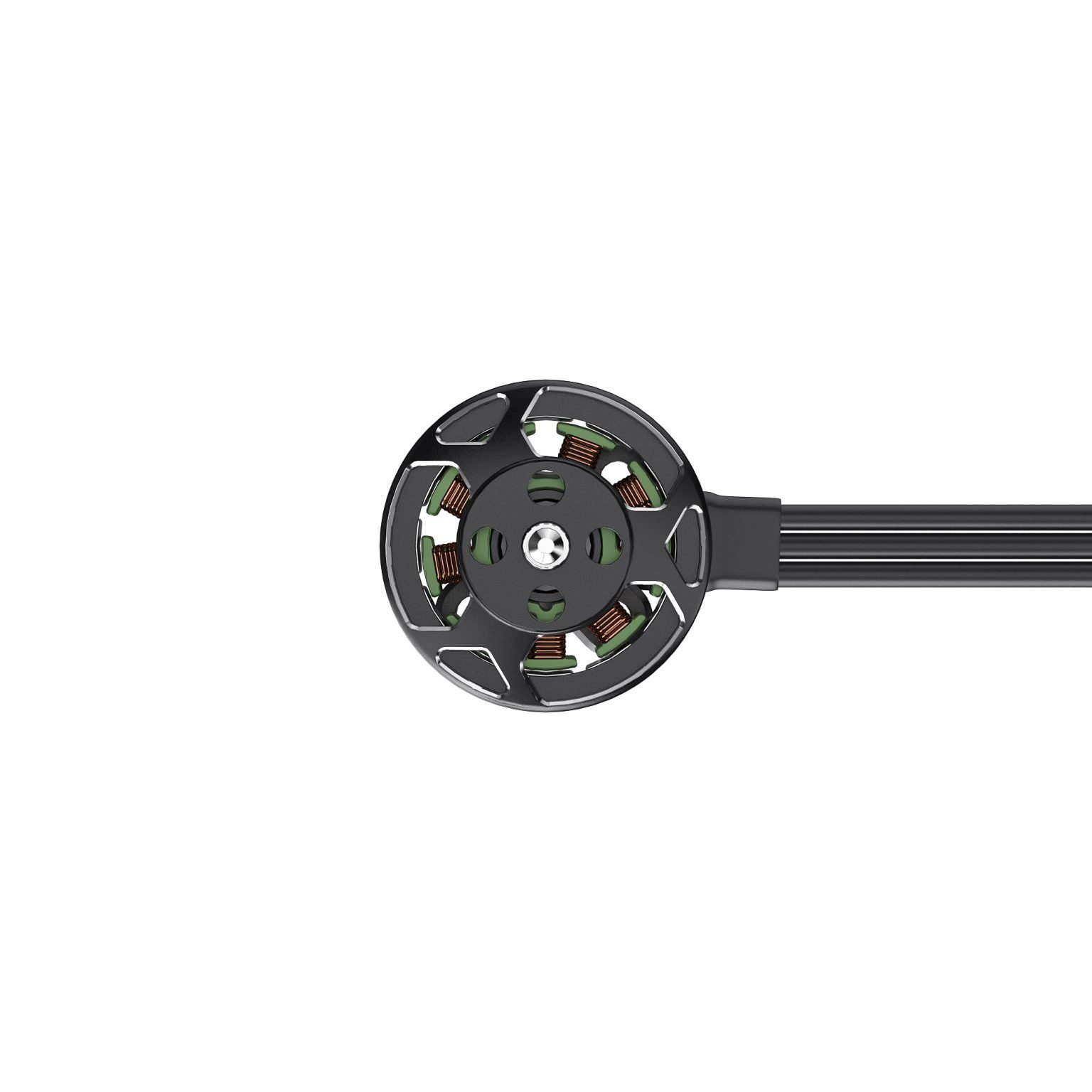

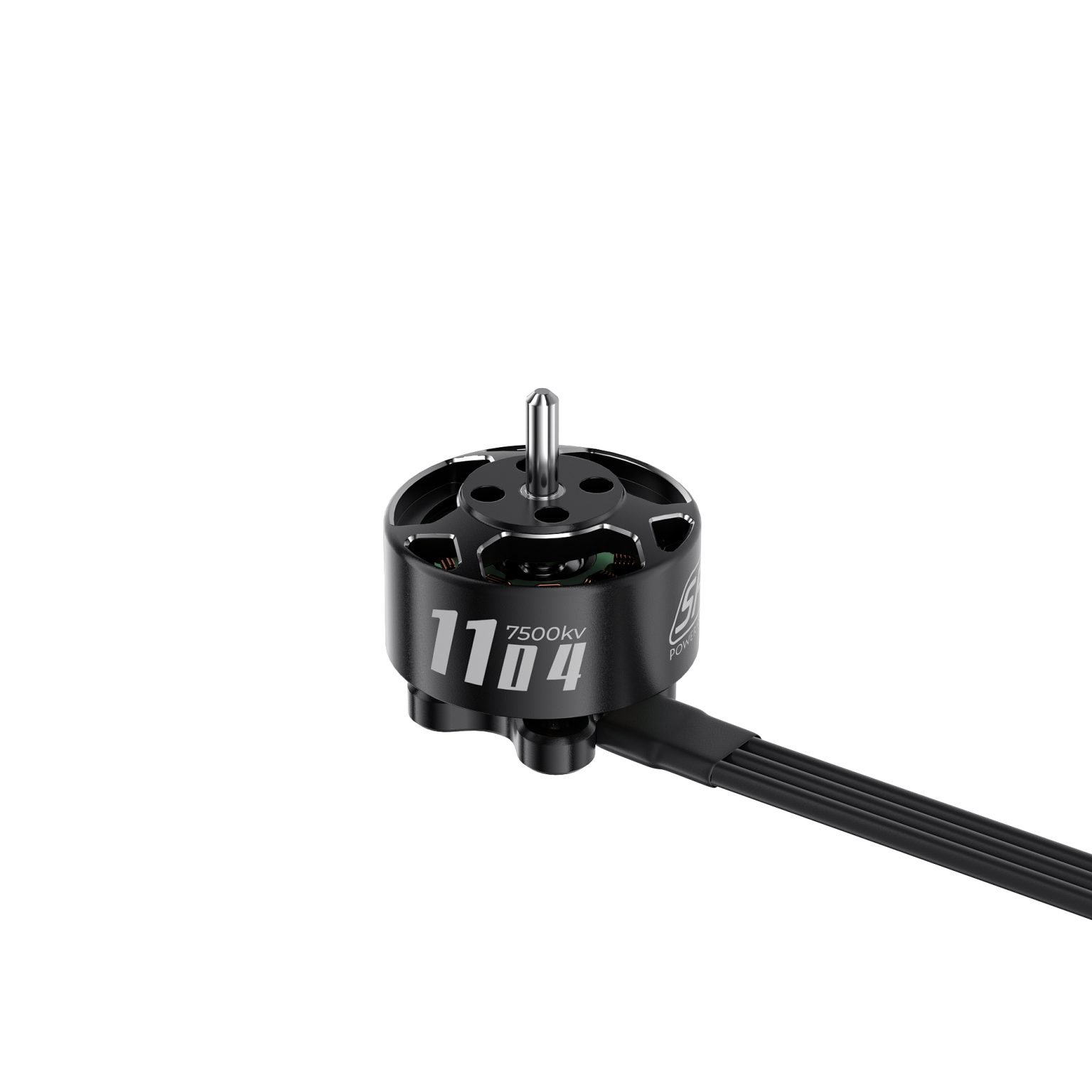

KSY SPEEDX2 1104 7500KV Motor

Feature

1. 7500KV ultra-high rotational speed, compatible with 3S batteries , with faster response and better control.
2. Multi-strand winding and large hollow design for lower copper loss and faster heat dissipation.
3. 9N12P slot-type stator assembly, NSK/NMB high-precision bearings, ensuring stability without vibration even at high rotational speeds.
4. The high-precision CNC integrated molding aviation aluminum alloy shell weighs only 5.2g and has stronger impact resistance.

Specifications

• Model: GEPRC SPEEDX2 1104 7500KV Motor
• Max Watt:155W
• Peak current: 13.2A（3S）
• Interphase resistance:150mΩ
• Magnet: N52H
• Bearing type: NSK/NMB
• Configuration: 9N12P
• Dimension: Φ14.5*11.5mm
• Shaft Diameter: φ1.5mm
• Shaft Protruding Length: 4.95mm
• Mounting holes: 4-Φ9mm
• Lead: 60mm/28AWG
• ESC:20A
• Input Volts: 7.4-11.1V（2-3S LiPo)
• Winding: multi strand copper winding
• Weight: 5.2±0.2g(included wire)
• Suitable for: 1.6-2.2 inch lightweight drones

Includes

1 x GEPRC SPEEDX2 1104 7500KV Motor 6 x M2*4 Round Head Screw
