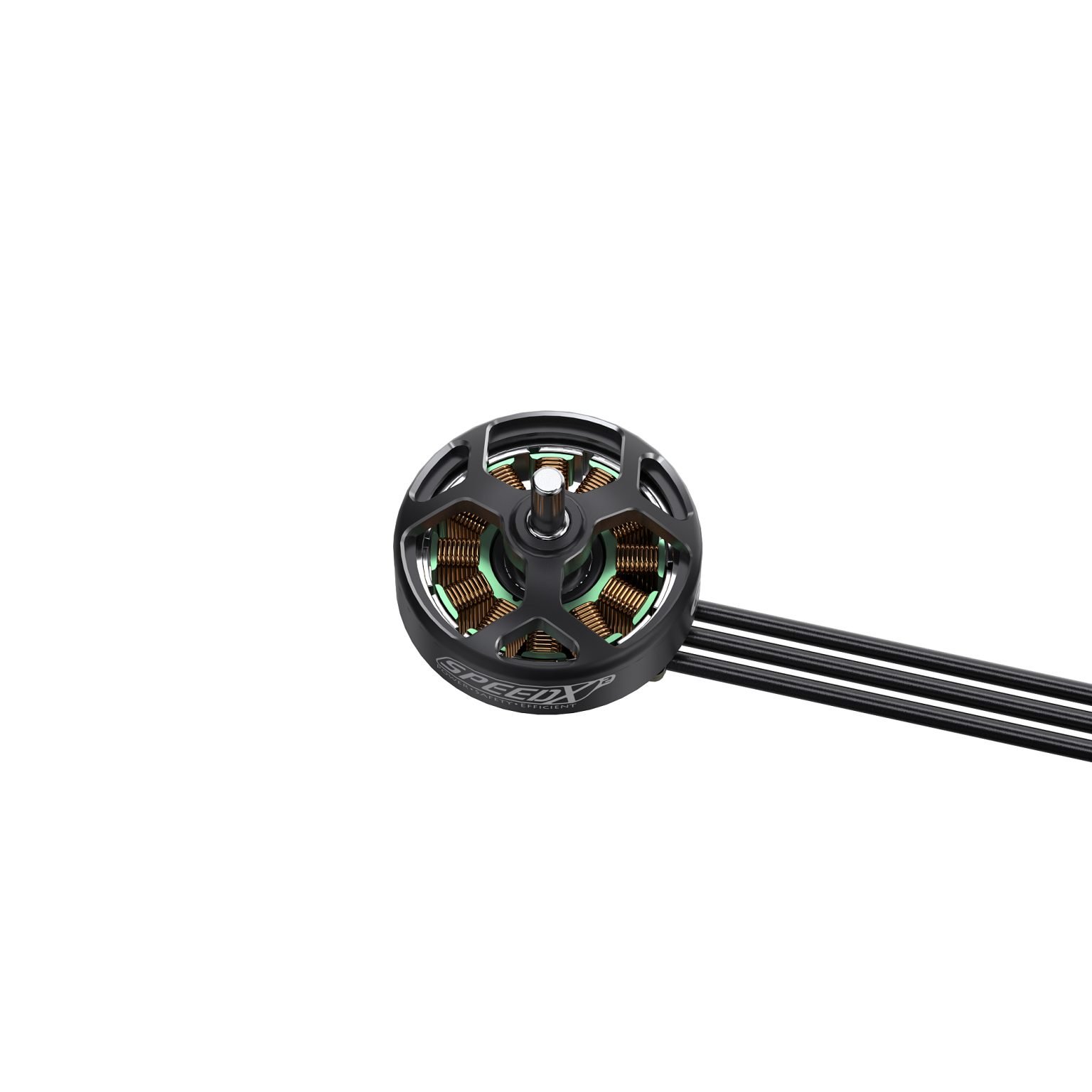

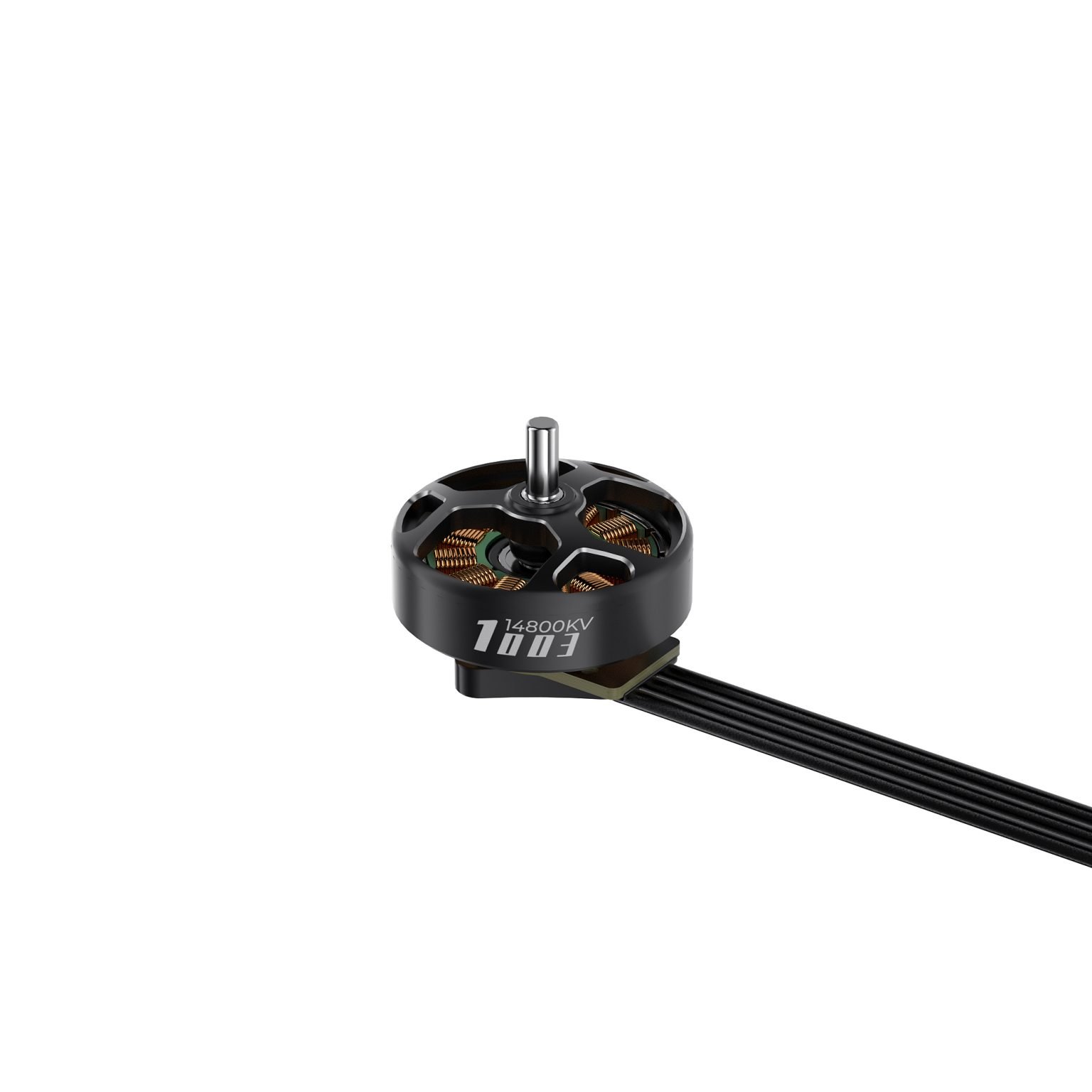

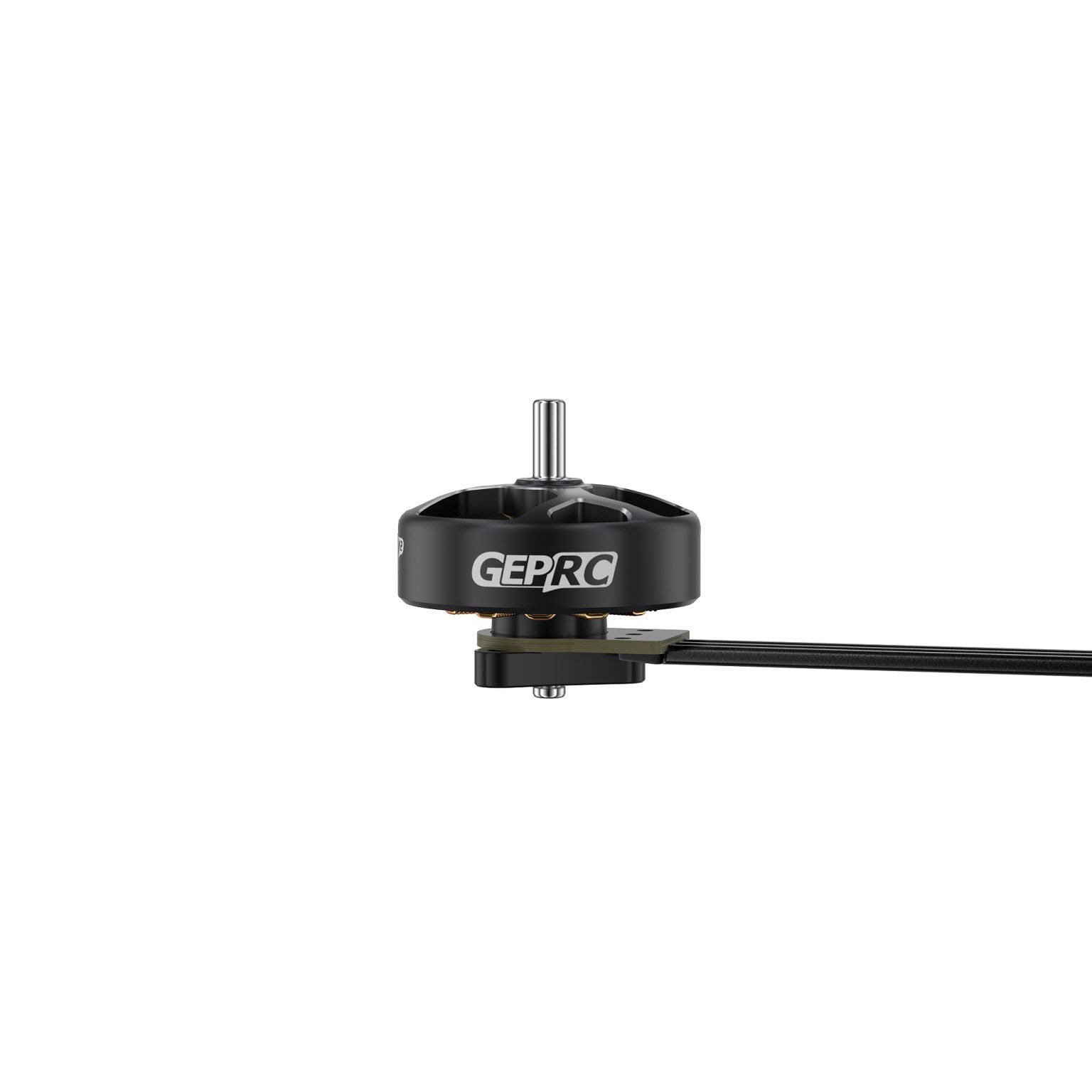

SPEEDX2 1003 is a high-performance brushless motor specially designed for 1.6-inch to 2-inch FPV drones. Built with N52H magnets and 7075 aviation-grade aluminum, it delivers efficient and stable performance in a compact, lightweight design that effectively reduces overall load. Equipped with a Kawasaki 1200 stator and an engineering-optimized magnetic circuit, the motor achieves remarkable power output and responsiveness.
Feature
NMB high-precision bearings provide stability with no vibration even at high RPM.
With a Kawasaki 1200 stator and excellent magnetic circuit design, the motor responds quickly and follows control precisely.
The CNC one-piece aviation aluminum alloy housing weighs only 3.2g, offering greater impact resistance.
The matte black finish with polished edges and large hollowed design make it visually appealing while reducing copper loss, lowering heat generation, and improving cooling efficiency.
Specifications
Model: GEPRC SPEEDX2 1003 14800KV Motor
Max Watt: 78.4W
Peak current: 10.6A（3S）
Interphase resistance: 95mΩ
Magnet: N52H
Bearing type: NMB
Configuration: 9N12P
Dimension: Φ13.6*8.7mm
Shaft Diameter: φ1.5mm
Shaft Protruding Length: 3mm
Mounting holes: 3-φ6.6mm
Lead: 50mm/30AWG
ESC:12-20A
Input Volts: 7.4V（2S LiPo)
Winding: multi strand copper winding
Weight: 3.2g±0.2g (included wire)
Suitable for:1.6 inch -2 inch lightweight models
Includes
1 x GEPRC SPEEDX2 1003 14800KV motor
6 x M1.4*4mm screws
