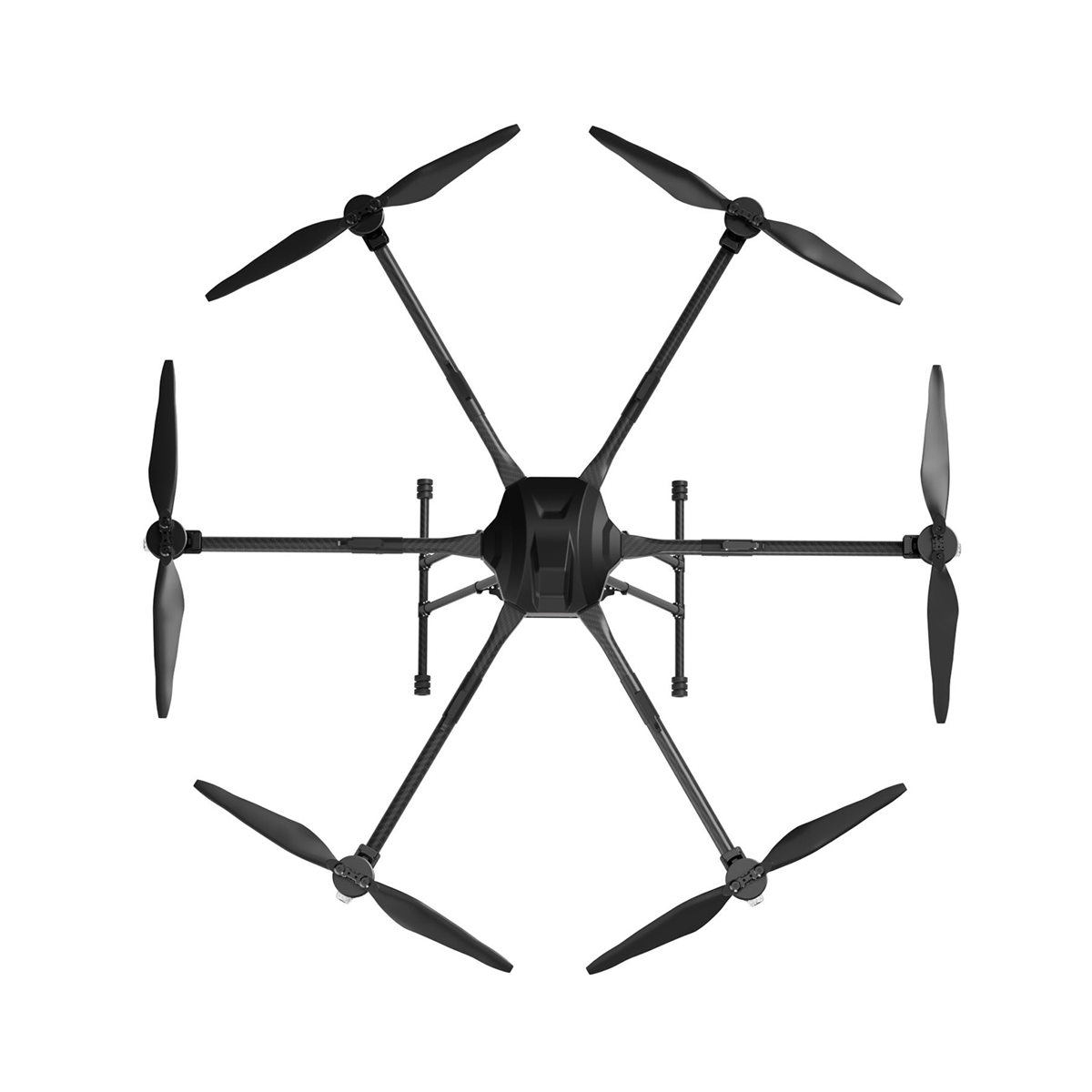

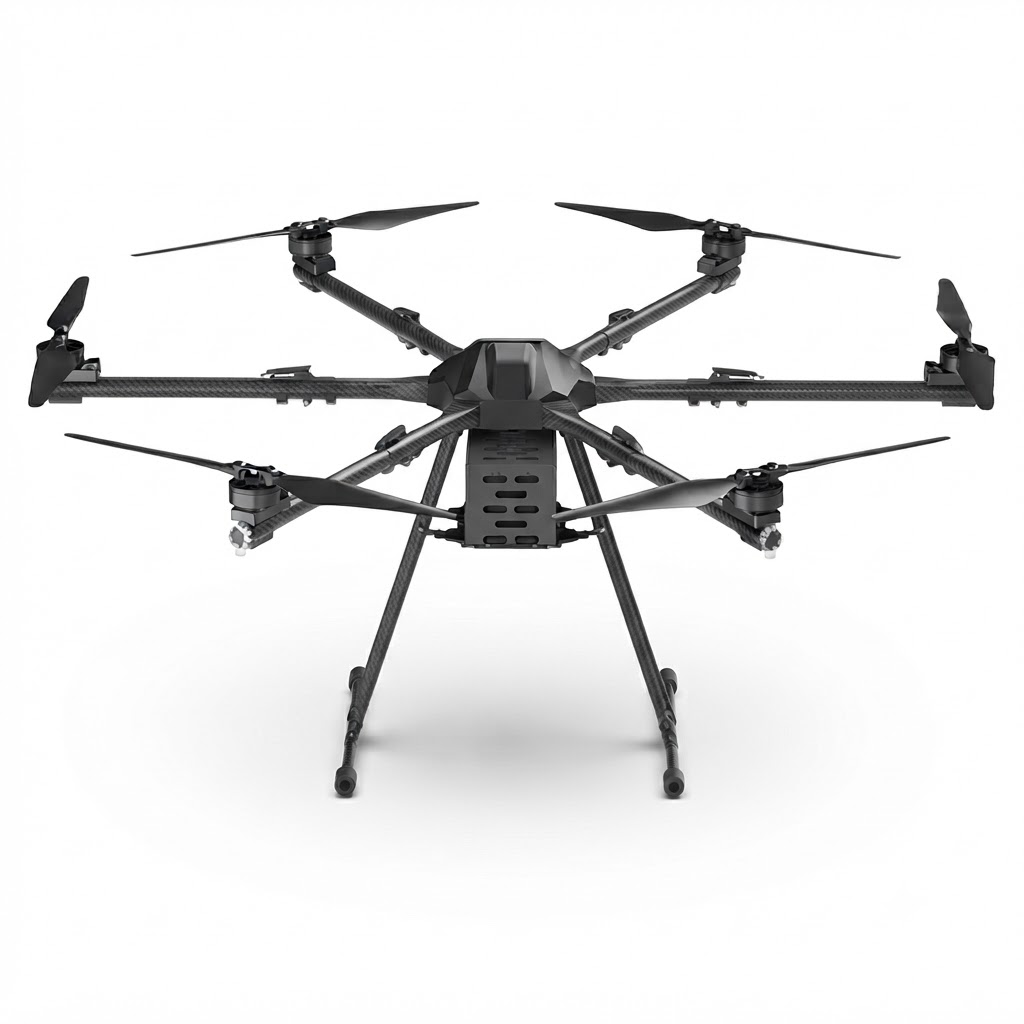

The KSY HV-25D-6 is a high-performance hexarotor lightweight drone UAV engineered for heavy payload transport and precision mapping missions. Equipped with a 30 kg payload capacity, ZR10 camera, online RTK version, and a powerful dual 14S soft-pack battery system, it delivers an empty load endurance of 55 minutes, a full load endurance of 20 minutes, and operates reliably over a 10 km control distance.

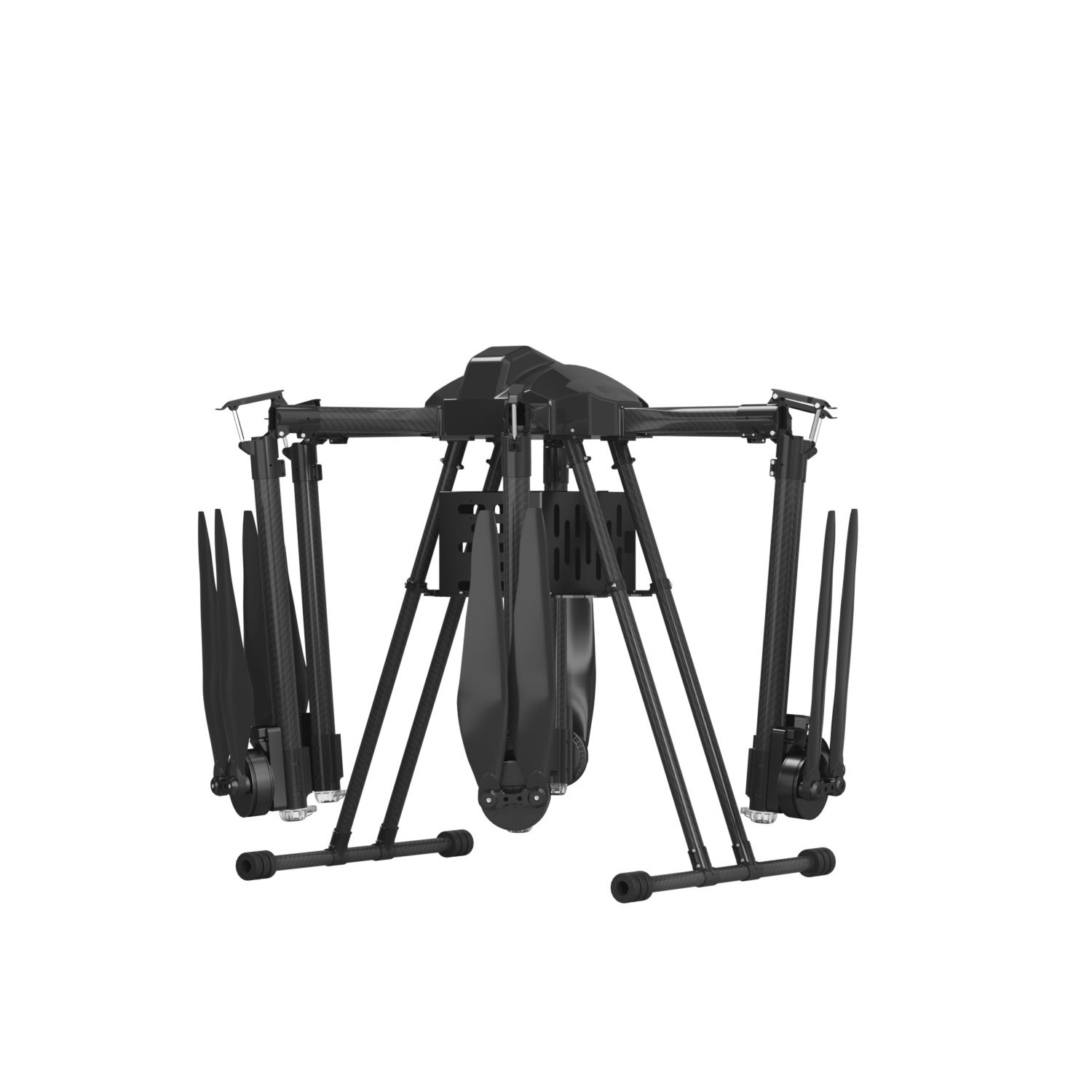

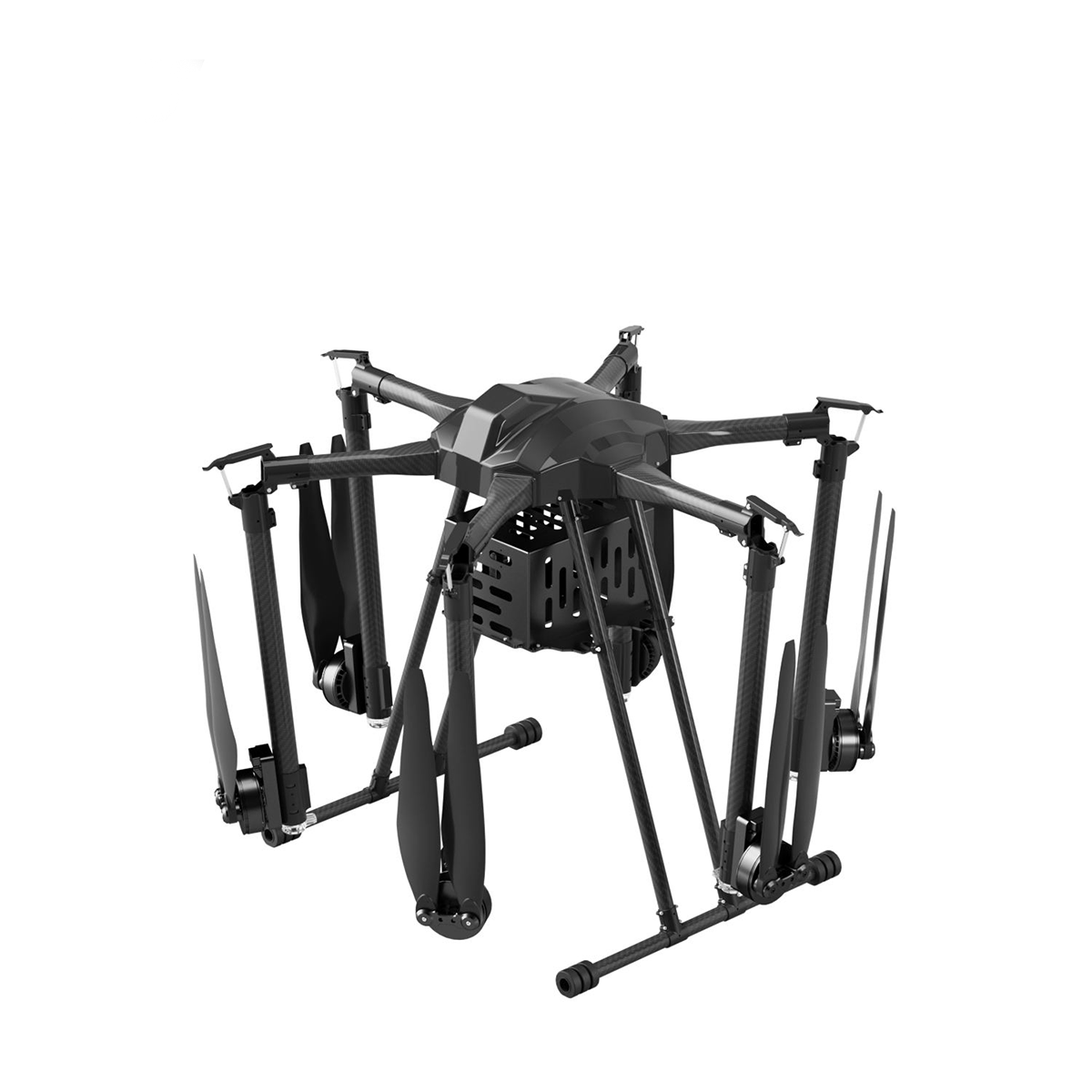

KSY HV-25D-6 LIGHTWEIGHT DRONE UAV Short Description: The KSY HV-25D-6 is a high-performance hexarotor lightweight drone UAV engineered for heavy payload transport and precision mapping missions. Equipped with a 30 kg payload capacity, ZR10 camera, online RTK version, and a powerful dual 14S soft-pack battery system, it delivers an empty load endurance of 55 minutes, a full load endurance of 20 minutes, and operates reliably over a 10 km control distance. General Dimensions & Structure: • Type: Six-axis / M630 (30 kg) • Rotor Quantity: 6 • Wheelbase (Diagonal): 2020 mm • Folded Size: 1100 × 1050 × 840 mm • Unfolded Size: 2025 × 1800 × 840 mm • Product Weight: 18.6 kg • Payload Capacity: 30 kg • Take Off Weight: 49 kg Flight Performance: • Flight Speed: 5 m/s • Ascent Speed: 3 - 5 m/s • Descent Speed: 3 m/s • Wind Resistance: 5 m/s • Flight Height: 1500 m • Control Distance: 10 km • Operate Temperature: 0 - 40°C • Endurance (Empty load): 55 min • Endurance (Full load): 20 min Avionics, Control & Power System: • Flight Control System: V12 • Dynamic System: X9 plus • Controller: G12 • Camera: ZR10 • RTK: Online version • Soft-Pack Battery: 14S 30000mah*2 • Charger: TA3200 • Work Voltage: 14S • Battery Capacity: 54000 mAh
