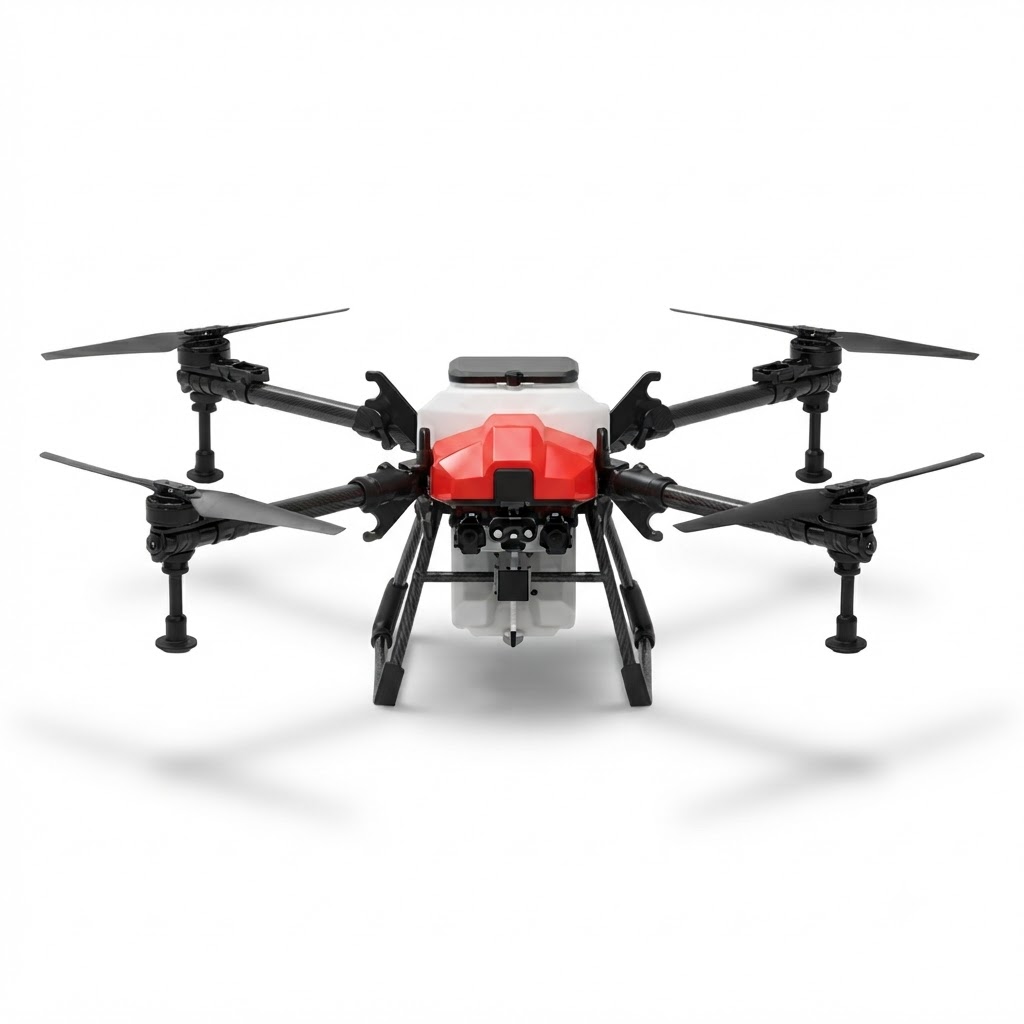

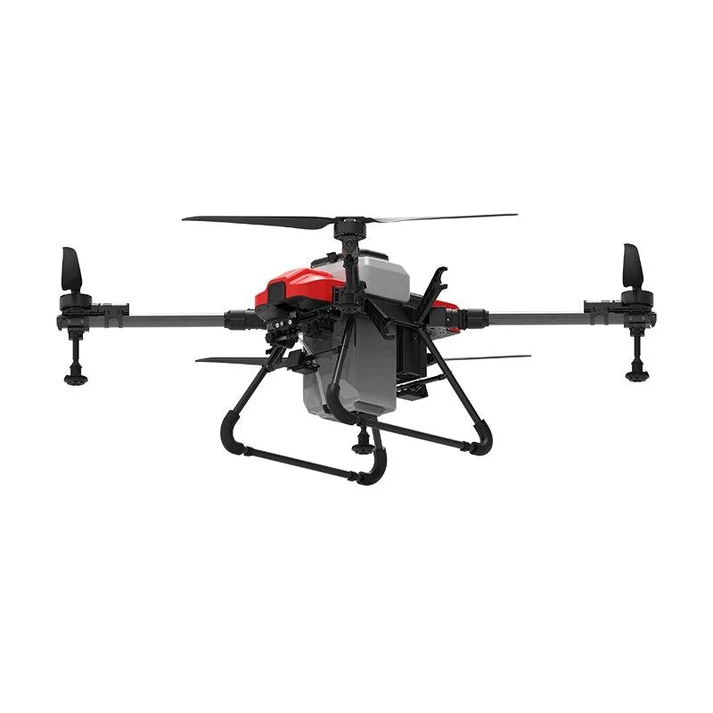

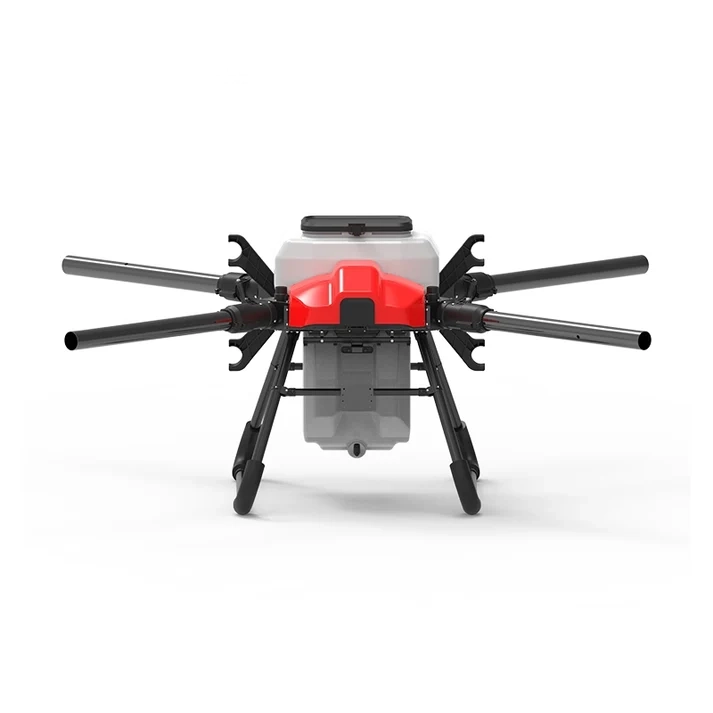

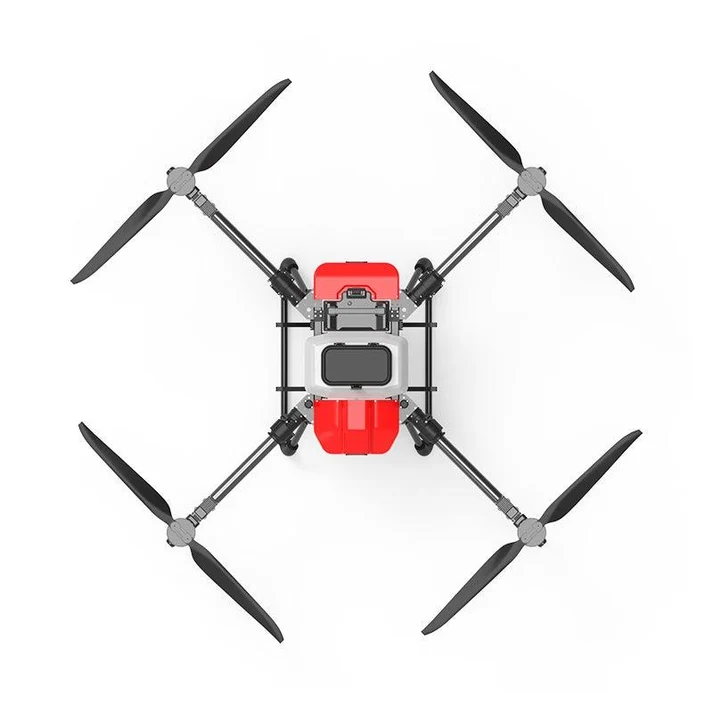

The KSY HV-25D-4 X4-40 35L is a high-efficiency four-axis plant protection drone engineered for agricultural spraying and crop management. Equipped with a 40L tank capacity, an 8L impeller pump, and dual flow meters, it delivers a spraying efficiency of 120 acres per charge with a wide 8-10m spray width. Powered by an 18S 30000mAh soft-pack battery and the V9 Pro flight control system, it ensures stable and precise agricultural operations over a 30km control distance.
KSY HV-25D-4 X4-40 35L PLANT PROTECTION DRONE UAV Short Description: The KSY HV-25D-4 X4-40 35L is a high-efficiency four-axis plant protection drone engineered for agricultural spraying and crop management. Equipped with a 40L tank capacity, an 8L impeller pump, and dual flow meters, it delivers a spraying efficiency of 120 acres per charge with a wide 8-10m spray width. Powered by an 18S 30000mAh soft-pack battery and the V9 Pro flight control system, it ensures stable and precise agricultural operations over a 30km control distance. General Dimensions & Structure: • Type: Four-axis 40L • Wheelbase (Diagonal): 2300 mm • Folded Size: 1950 × 1720 × 815 mm • External Size: 6351 × 3408 × 15 mm • Product Weight: 35 kg (Not including battery) • Take Off Weight: 99 kg • Tank Capacity: 40 L • Propeller Quantity: Four blades propeller Flight Performance: • Flight Speed: 5 - 15 m/s • Ascent Speed: 5 m/s • Descent Speed: 3 m/s • Wind Speed Resistance: 6 m/s • Control Distance: 30 km • Operating Temperature: -10°C to 40°C Spraying System: • Water Pump: 8L impeller pump • Sensor: Centrifugal nozzle • Flowmeter: Dual flow meters • Spray Method: Centrifugal nozzle • Spray Width: 8 - 10 m • Spraying Efficiency: 120 acre/ • Spraying Flow Rate: 12 L/min Avionics, Control & Power System: • Flight Control System: V9 Pro • Dynamic System: X13 • Controller: H12 • Camera: Three-body camera • Soft-Pack Battery: 18S 30000mAh • Charger: PA7200pro • Operating Voltage: 75.6V (18S)
