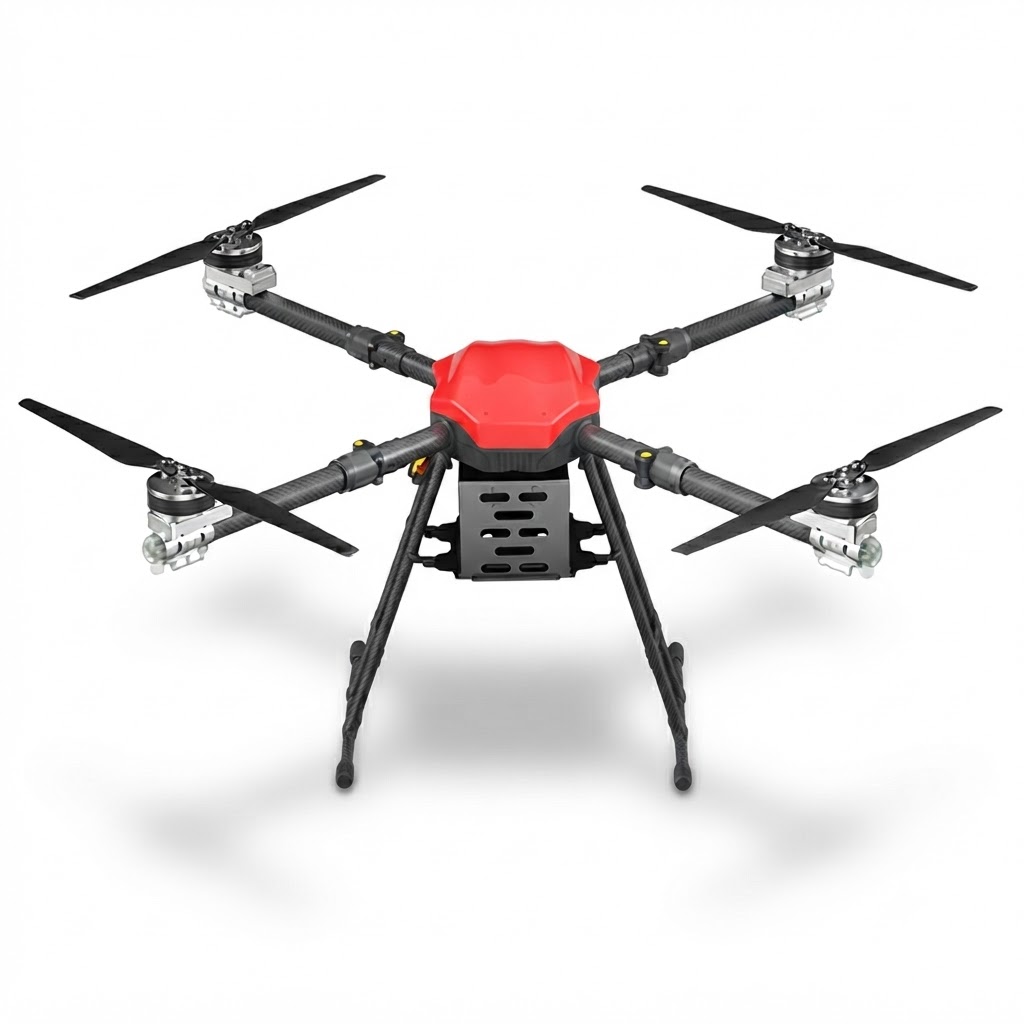

The KSY HV-12D-4 is a versatile four-axis lightweight drone UAV engineered for aerial photography, mapping, and utility missions. Equipped with a 15 kg payload capacity, ZR10 camera, online RTK version, and a 14S 30000mAh soft-pack battery, it provides an empty load endurance of 55 minutes, a full load endurance of 15 minutes, and operates reliably over a 10 km control distance.
KSY HV-12D-4 LIGHTWEIGHT DRONE UAV Short Description: The KSY HV-12D-4 is a versatile four-axis lightweight drone UAV engineered for aerial photography, mapping, and utility missions. Equipped with a 15 kg payload capacity, ZR10 camera, online RTK version, and a 14S 30000mAh soft-pack battery, it provides an empty load endurance of 55 minutes, a full load endurance of 15 minutes, and operates reliably over a 10 km control distance. General Dimensions & Structure: • Type: Four-axis, 15 kg • Rotor Quantity: 4 • Wheelbase (Diagonal): 1400 mm • Folded Size: 650 × 650 × 600 mm • Unfolded Size: 1100 × 1100 × 600 mm • Product Weight: 12.5 kg • Payload Capacity: 15 kg • Take Off Weight: 35 kg Flight Performance: • Flight Speed: 5 m/s • Ascent Speed: 3 - 5 m/s • Descent Speed: 3 m/s • Wind Resistance: 5 m/s • Flight Height: 1500 m • Control Distance: 10 km • Operate Temperature: 0 - 40°C • Endurance (Empty load): 55 min • Endurance (Full load): 15 min Avionics, Control & Power System: • Flight Control System: V12 • Dynamic System: X9 • Camera: ZR10 • RTK: Online version • Soft-Pack Battery: 14S 30000mAh • Charger: TA3200 • Work Voltage: 14S • Battery Capacity: 30000 mAh
