The VTOL-3.2 is an advanced vertically articulated composite-wing UAV designed for efficient long-endurance mapping and reconnaissance missions. Powered by a robust 22.8V/25Ah*4 battery pack and featuring a maximum payload of 5 kg, it delivers a flight duration of up to 1.8 hours (108 minutes), a cruising speed of 20 m/s (max cruising speed 93.6 km/h), and a transmission distance of 20 km.

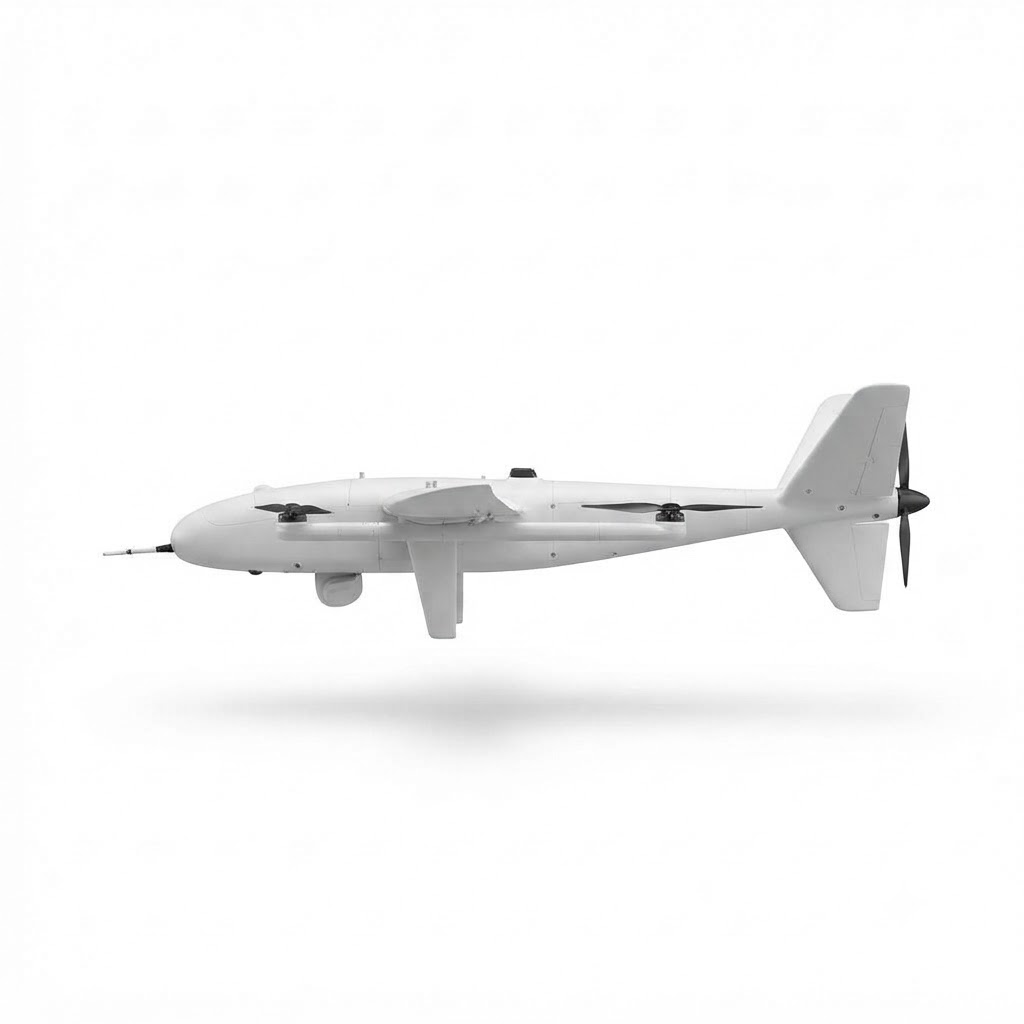

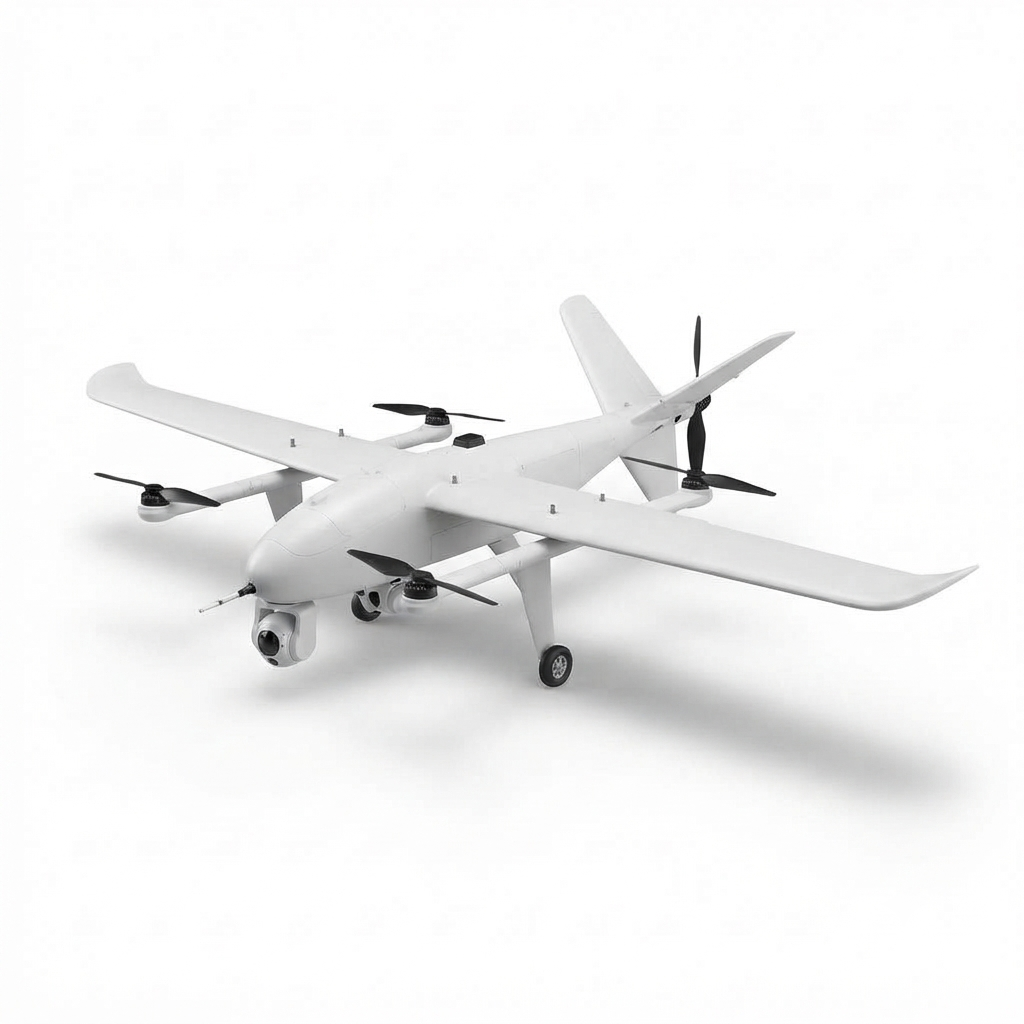

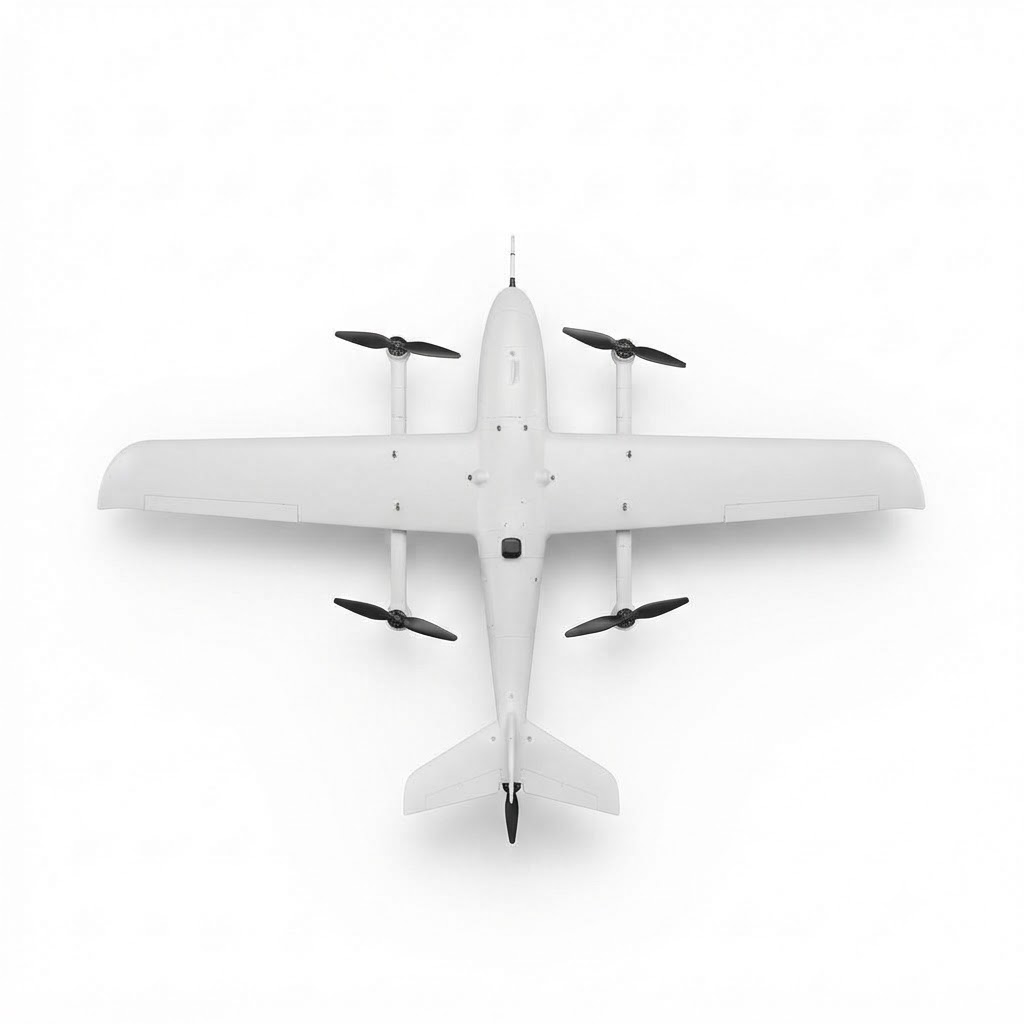

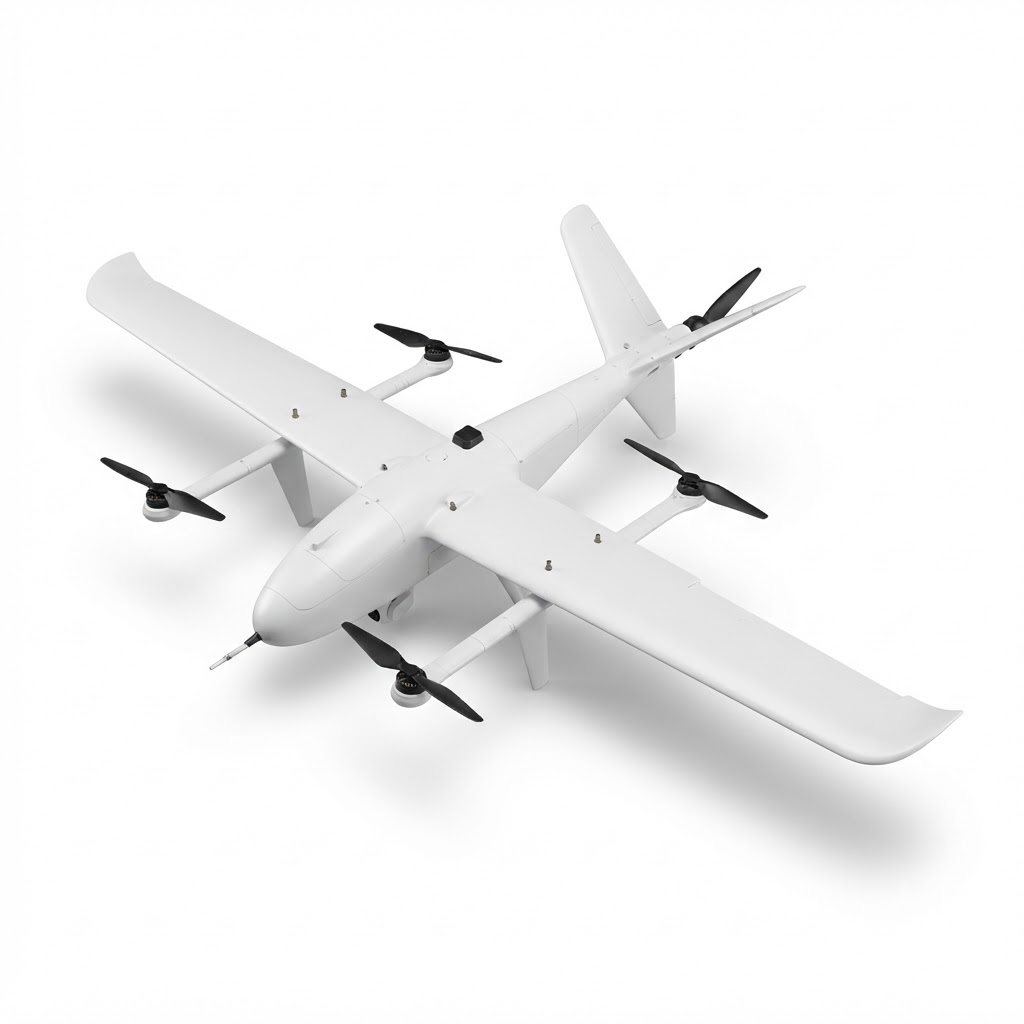

KSY VTOL-3.2 VERTICALLY ARTICULATED COMPOSITE-WING UAV Short Description: The VTOL-3.2 is an advanced vertically articulated composite-wing UAV designed for efficient long-endurance mapping and reconnaissance missions. Powered by a robust 22.8V/25Ah*4 battery pack and featuring a maximum payload of 5 kg, it delivers a flight duration of up to 1.8 hours (108 minutes), a cruising speed of 20 m/s (max cruising speed 93.6 km/h), and a transmission distance of 20 km. General Dimensions & Structure: • Overall Dimension: 3.2 × 1.83 × 0.46 m • Transport Box Size: 1800 × 680 × 480 mm • Maximum Take-Off Weight: 26 kg • Max Payload: 5 kg • Wing Load: ≈250 g/dm² @ 12.5 kg Flight Performance: • Duration of Flight: 1.8H (108 min) @ 5kg payload • Cruising Speed: 20 m/s (93.6 km/h maximum cruising speed) • Maximum Level Flight Ceiling: 4800 m • Transmission Distance: 20 km • Maximum Wind Resistance: Level 7 • Waterproof Class: IP54 Powertrain & Propulsion System: • Composing Wing with Rotor Motor: Series 5 Motor • Electrically Adjustable Composite Wing Rotor: 80A Electric Adjuster • Composite Wing Rotor Blade: 16-inch blade • Servo Actuator for Fixed-Wing Motors: GDW steering engine • Fixed-Wing Motor with Electronic Control System: Accompanying Motor • Fixed-Wing Rotor Blades & Electronic Control Device: Accompanying Motor Electrical & Avionics System: • Flight Control Controller: A3pro*1 • Data Transmission System: Supporting Data Transmission • Charger & Rotor Assembly: High-Speed Charger • Fixed-Wing Battery Pack: Ge's battery: 22.8V/25Ah*4 (45.6V)
